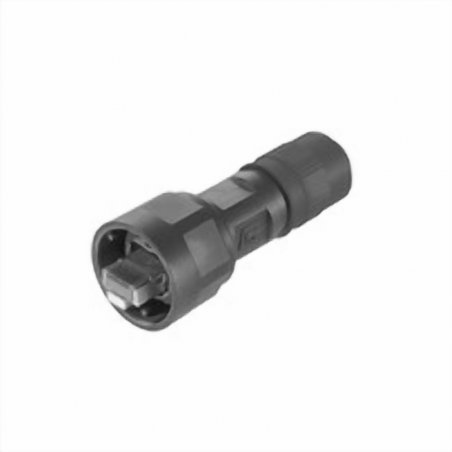

1012490000 Conector rj45 sin herr , IE-PS-V01P-RJ45-FH

Referencia IE-PS-V01P-RJ45-FH

Contenido: 10 Pzas.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Connection 1	RJ45
Connection 2	IDC
Description of article	Variant 1 plastic
Colour	black
Insulation cross-section, min.	0.85
Insulation cross-section, max.	1.6
Category	Cat.6_A / Class E_A (ISO/IEC 11801 2010)
Connection diameter, solid	0.4...0.64
Conductor connection cross-section, solid (AWG)	AWG 24...AWG 22
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26...AWG 22
MICE classification M	M₃
MICE classification I	I₃
MICE classification C	C₁
MICE classification E	E₃
Sheath diameter, min.	5 mm
Sheath diameter, max.	10 mm
Shielding	360° all-round enclosure
Protection degree	IP67
Ability to reconnect	≥ 10 cycles (for the same or larger cross-section)
