1018810000 Pasamuros modulo rj45 , IE-FCM-RJ45-FJ-A

Referencia IE-FCM-RJ45-FJ-A

Contenido: 10 Pzas.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Tightening torque fixing nut	2 Nm
Connection 1	RJ45
Connection 2	IDC

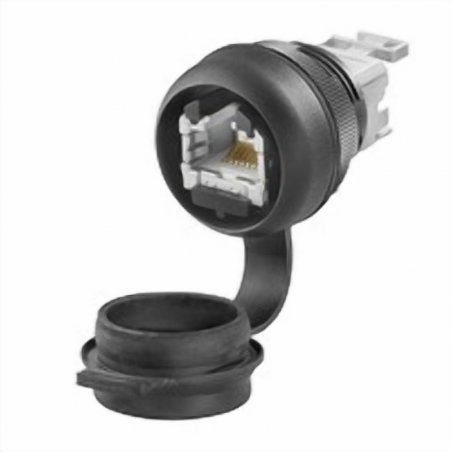

Description of article	FrontCom Micro RJ45 module
Wiring	TIA-568A
Colour	black
Housing main material	PA UL 94 V0
Insulation cross-section, max.	1.6 mm
Category	Cat.6_A / Class E_A (ISO/IEC 11801 2010)
Contact surface	Gold over nickel
Connection diameter, solid	0.4...0.64
Conductor connection cross-section, solid (AWG)	AWG 24...AWG 22
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26...AWG 22
Sheath diameter, min.	5.5 mm
Sheath diameter, max.	10 mm
Type of mounting	Cabinet, Distribution box
Shielding	360° shield contact
Protection degree	IP65, in closed state
Plugging cycles	750
