Contenido: 1 Pza.

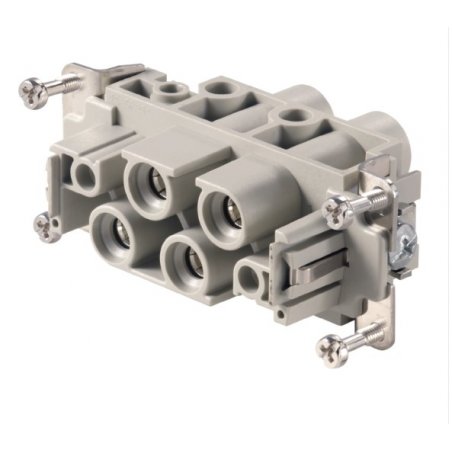

1023220000 Conector macho 830v 80a 4polos , HDC S4/0 MS
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
BG | 6 |
Conductor cross-section | 16 mm² |
Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
Insulating material group | IIIa |
Insulation strength | 1010 Ω |
Material | Copper alloy |
Max. torque for main contact | 3 Nm |
Min. torque for main contact | 1.5 Nm |
Number of poles | 4 |
Number of power contacts | 4 |
Plugging cycles, silver | ≥ 500 |
Pollution severity | 3 |
Rated current (DIN EN 61984) | 80 A |
Rated impulse voltage (DIN EN 61984) | 8 kV |
Rated voltage (DIN EN 61984) | 830 V |
Rated voltage according to UL/CSA | 600 V AC/DC |
Series | MixMate |
Size | 6 |
Surface finish | Silver passivated |
Type | Male |
UL 94 flammability rating | V-0 |
Volume resistance | ≤1 mΩ |
