Contenido: 1 Pza.

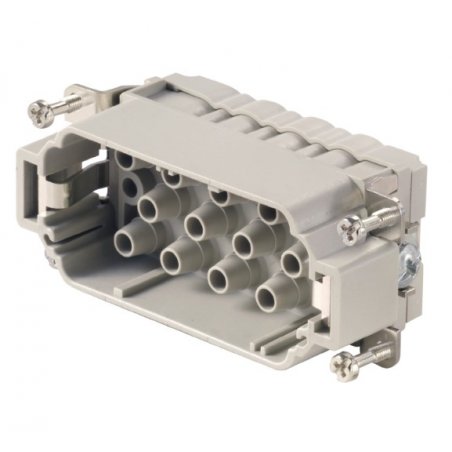

1023340000 Conector macho 14p 40a 690v , HDC S12/2 MC
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
BG | 6 |
Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
Insulating material group | IIIa |
Insulation strength | 1010 Ω |
Material | Copper alloy |
Number of poles | 14 |
Number of power contacts | 12 |
Number of signal contacts | 2 |
Plugging cycles, gold | ≥ 500 |
Plugging cycles, silver | ≥ 500 |
Pollution severity | 3 |
Power contact, type | HX |
Rated current (DIN EN 61984) | 40 A |
Rated impulse voltage (DIN EN 61984) | 8 kV |
Rated voltage (DIN EN 61984) | 690 V |
Rated voltage according to UL/CSA | 600 V AC/DC |
Series | MixMate |
Signal contact, type | HD |
Size | 6 |
Type | Pin |
UL 94 flammability rating | V-0 |
Volume resistance | ≤2 mΩ |
