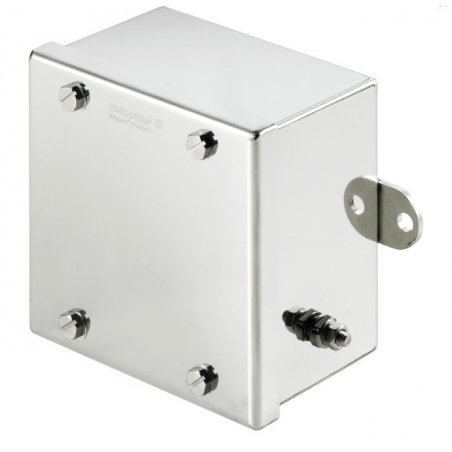

1058850000 Caja acero inox 190100190mm , KLIPPON STB 3 SS E

Referencia KLIPPON STB 3 SS E

Contenido: 1 Pza.

1058850000 Caja acero inox 190*100*190mm , KLIPPON STB 3 SS E

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Access opening: height	170 mm
Access opening: width	172 mm
Areas of use	Explosive risk zone, Packaging industry, Transportation, Process industry, Marine engineering
Enclosure attachment	Welded-on mounting foot with 8-mm holes
Flange plate	No
Impact resistance	10 J version standard, 7 J ATEX version
Integral fixing	TAS 20 rail welded to floor
Lid	Yes
Lid attachment	M5 hexagonal screw with slot and 10mm distance across flats
Material	Stainless steel 1.4404 (316L)
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Number of lid screws	4
Operating temperature, max.	100 °C
Operating temperature, min.	-60 °C
Protection class (UL)	Type 4, Type 4x
Protection degree	IP66
Seal material	Silicone
Surface finish	electropolished
Torque for lid screws	2.5 Nm
