Contenido: 1 Pza.

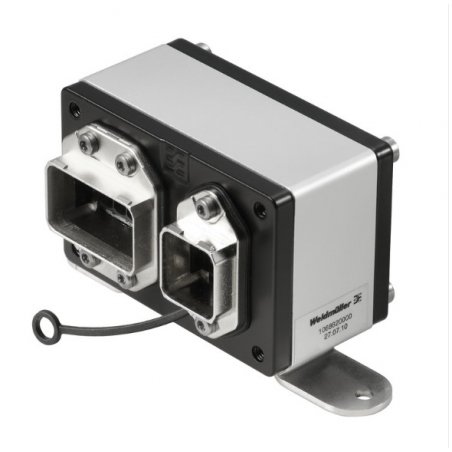

1068830000 Toma de enchufe rj45 , IE-CD-V14MRJ/VAPM24V-FJ
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Cable seal material (power connector) | TPE |
Colour (power connector) | Silver grey |
Connection 2 (power connector) | Tension clamp |
Connection cross-section AWG, max. (power connector) | 13 |
Connection cross-section AWG, min. (power connector) | 18 |
Contact carrier material (power connector) | PA |
Contact material (power connector) | Copper alloy |
Contact surface (power connector) | Gold over nickel |
Current capacity at 50 °C (power connector) | 16 A |
Housing base material (power connector) | Zinc diecast, nickel-plated |
Interlock type (power connector) | Push Pull |
Nominal voltage (power connector) | 24 V |
Number of poles | 5 |
Plugging cycles (power connector) | ≤ 100 |
Pollution degree (power connector) | 2 |
Seal material (power connector) | NBR |
Sheath diameter, max. (power connector) | 12 mm |
Sheath diameter, min. (power connector) | 6 mm |
Wire connection cross section, finely stranded, max. (power connector) | 2.5 mm² |
Wire connection cross section, finely stranded, min. (power connector) | 0.75 mm² |
Wire connection cross section, stranded, rated connection, max. (power connector) | 2.5 mm² |
Wire connection cross section, stranded, rated connection, min. (power connector) | 0.75 mm² |
