Contenido: 10 Pzas.

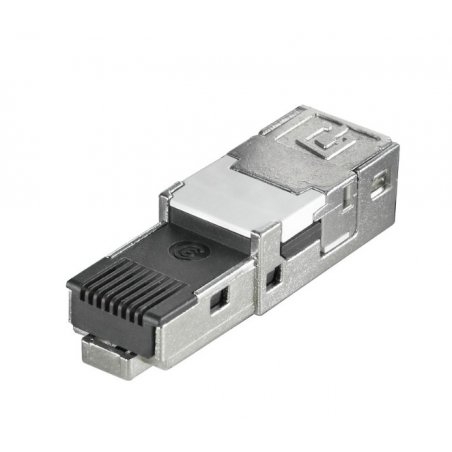

1132020000 Conector rj45 , IE-PI-RJ45-FH-B
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Fire load | 49 kJ |
Connection 1 | RJ45 |
Connection 2 | IDC |
Description of article | Plug insert RJ45, no tools required |

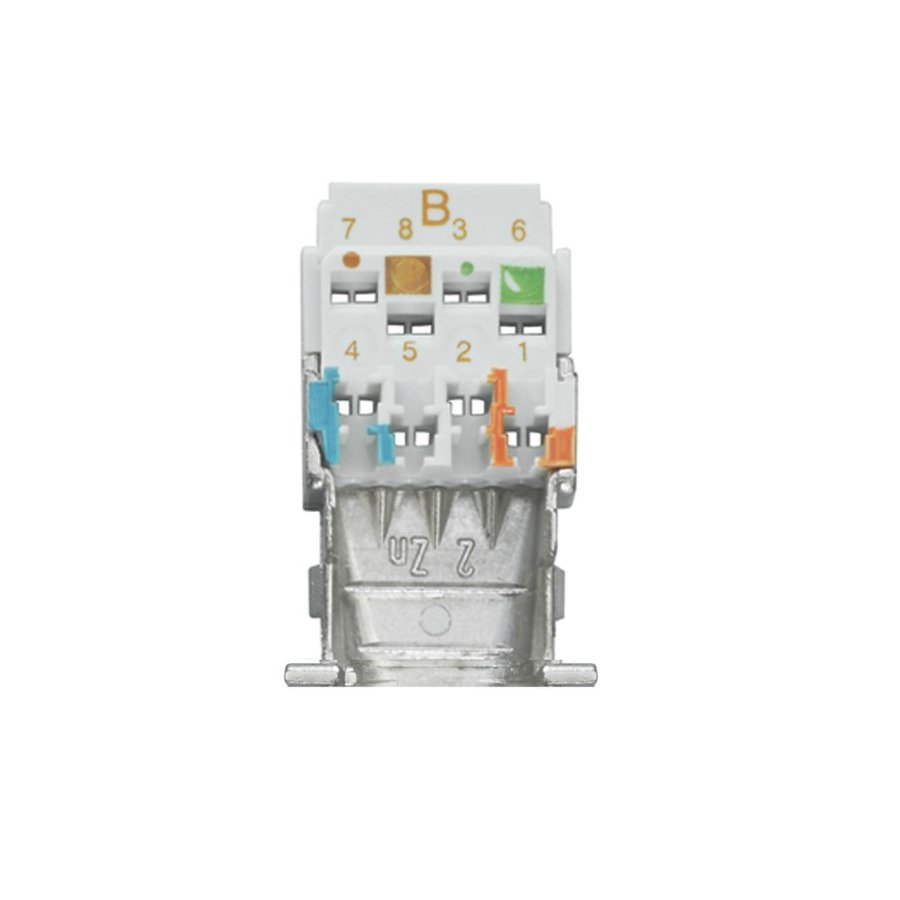

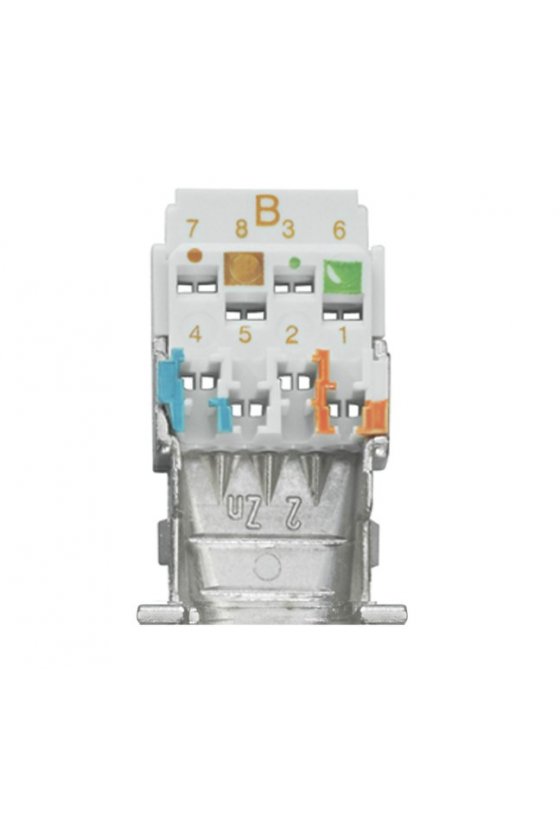

Wiring | EIA/TIA T568 B |
Colour | Miscellaneous |
Housing main material | Zinc diecast |
Speed | 10 GBit/s |
Insulation cross-section, min. | 0.85 |
Insulation cross-section, max. | 1.6 |
Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
Contact surface | Gold over nickel |
Connection diameter, solid | 0.4...0.64 |
Conductor connection cross-section, solid (AWG) | AWG 24...AWG 22 |
Conductor connection cross-section, flexible (AWG) | AWG 26...AWG 22 |
Conductor connection cross-section, extremely flexible | , Approval of the cable by Weidmüller necessary |
Conductor connection cross-section, extremely flexible (AWG) | , Approval of the cable by Weidmüller necessary |
Note, very finely stranded line connection | Approval of the cable by Weidmüller necessary |
Shielding | 360° all-round enclosure |
Protection degree | IP67 with housing |
Plugging cycles | 750 |
Ability to reconnect | ≥ 10 cycles (for the same or larger cross-section) |
