Contenido: 10 Pzas.

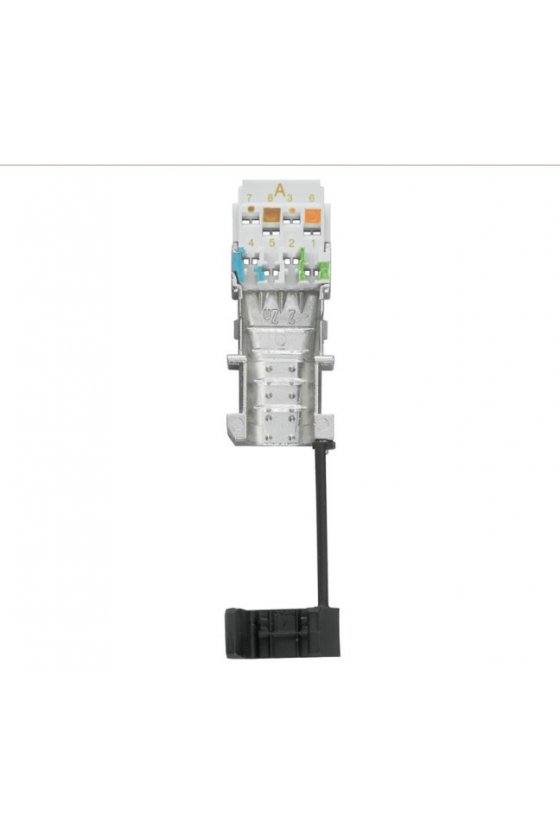

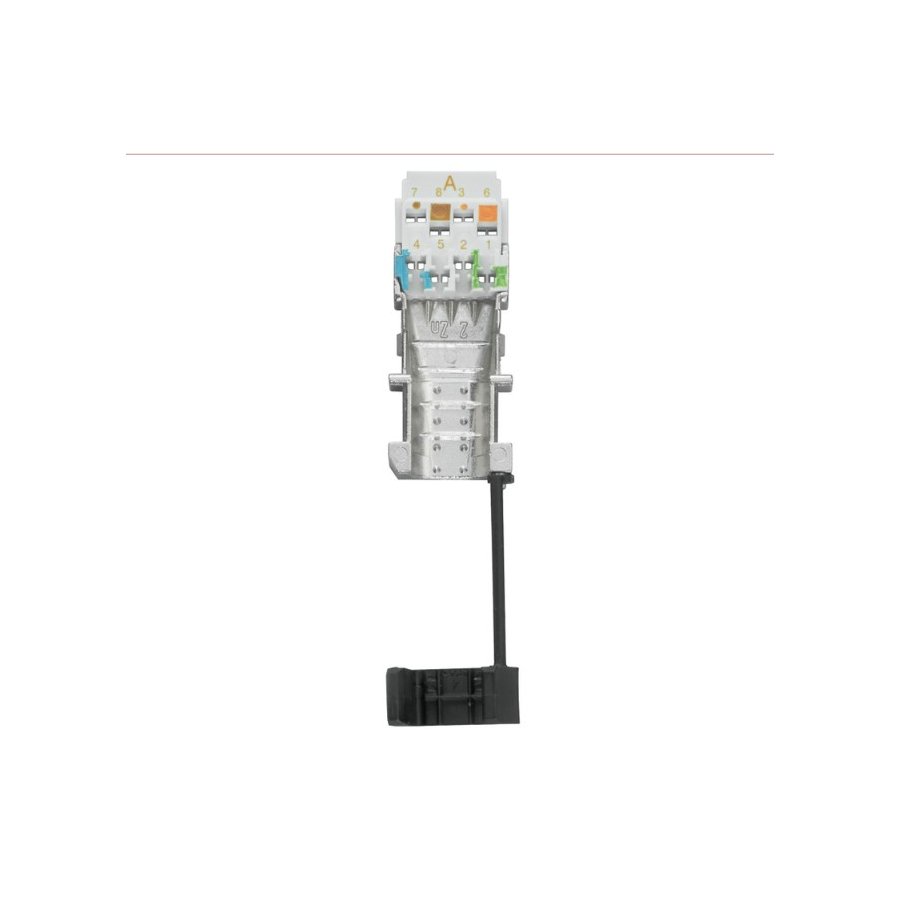

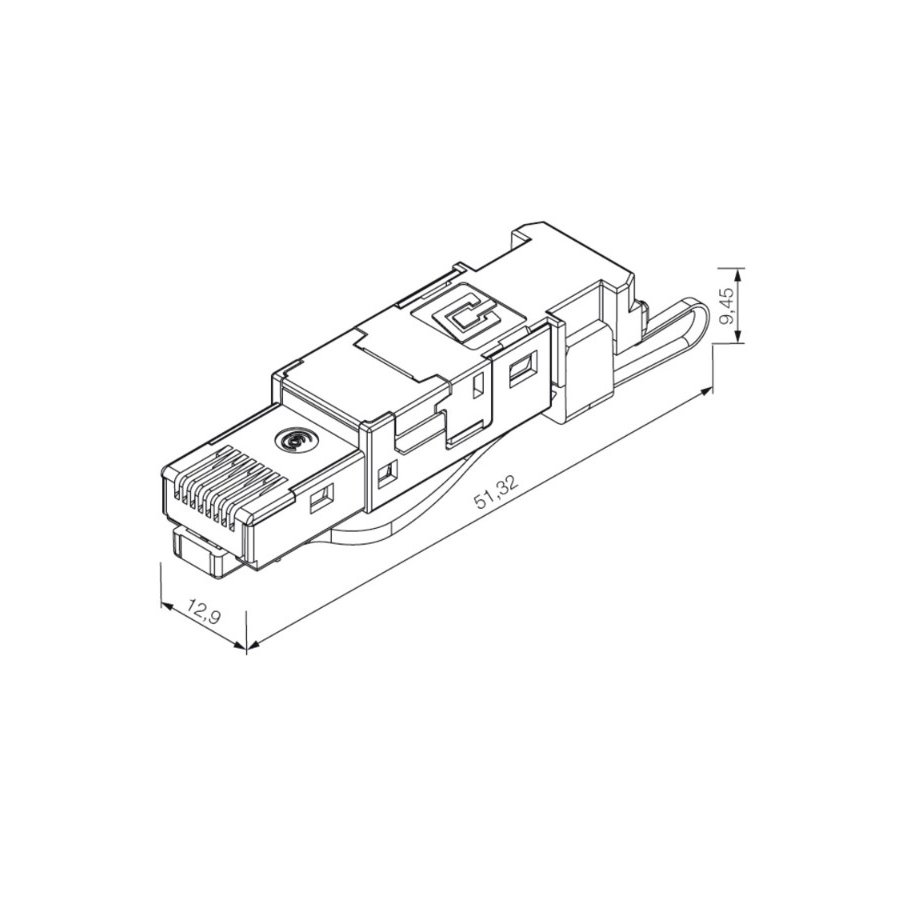

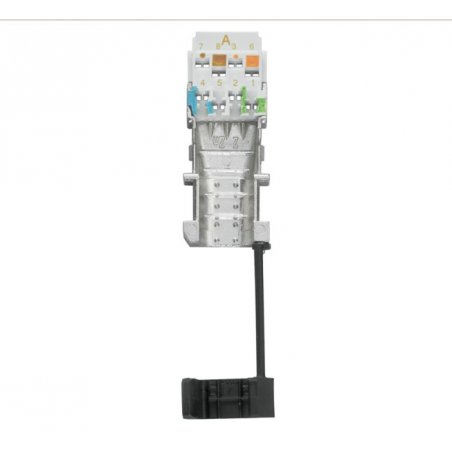

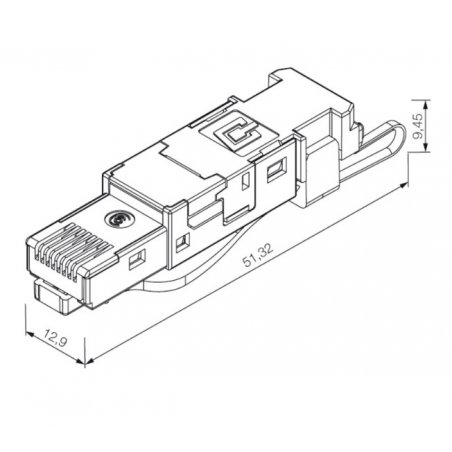

1132040000 Conector rj45 sin herramienta , IE-PS-RJ45-FH-BK-A
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Fire load | 77 kJ |
Halogen | No |
Material locking lever | PA UL94-V0 |
Material strain relief | PA UL94-V0 |
Connection 1 | RJ45 |
Connection 2 | IDC |
Wiring | 8-core, EIA/TIA T568 A |
Speed | 10 GBit/s |
Insulation cross-section, min. | 0.85 |
Insulation cross-section, max. | 1.6 |
Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
Contact material | Phosphorus bronze |
Connection diameter, solid | 0.41...0.64 |
Conductor connection cross-section, solid (AWG) | AWG 26/1...AWG 22/1 |
Conductor connection cross-section, solid | 0.13...0.32 mm² |
Connection diameter, flexible | 0.48...0.76 mm |
Conductor connection cross-section, flexible (AWG) | AWG 26/7...AWG 22/7 |
Wire connection cross section, finely stranded, min. | 0.141 mm² |
Conductor connection cross-section, flexible | 0.14...0.35 mm² |
Conductor connection cross-section, extremely flexible | , Approval of the cable by Weidmüller necessary |
Conductor connection cross-section, extremely flexible (AWG) | , Approval of the cable by Weidmüller necessary |
Note, very finely stranded line connection | Approval of the cable by Weidmüller necessary |
MICE classification M | M1 |
MICE classification I | I1 |
MICE classification C | C1 |
MICE classification E | E3 |
Sheath diameter, min. | 5.5 mm |
Sheath diameter, max. | 8.5 mm |
Shielding | 360° all-round enclosure |
Protection degree | IP20 |
Insertion force | ≤ 30 N |
Material insulator | PA UL94-V0 |
Ability to reconnect | ≥ 10 cycles (for the same or larger cross-section) |
