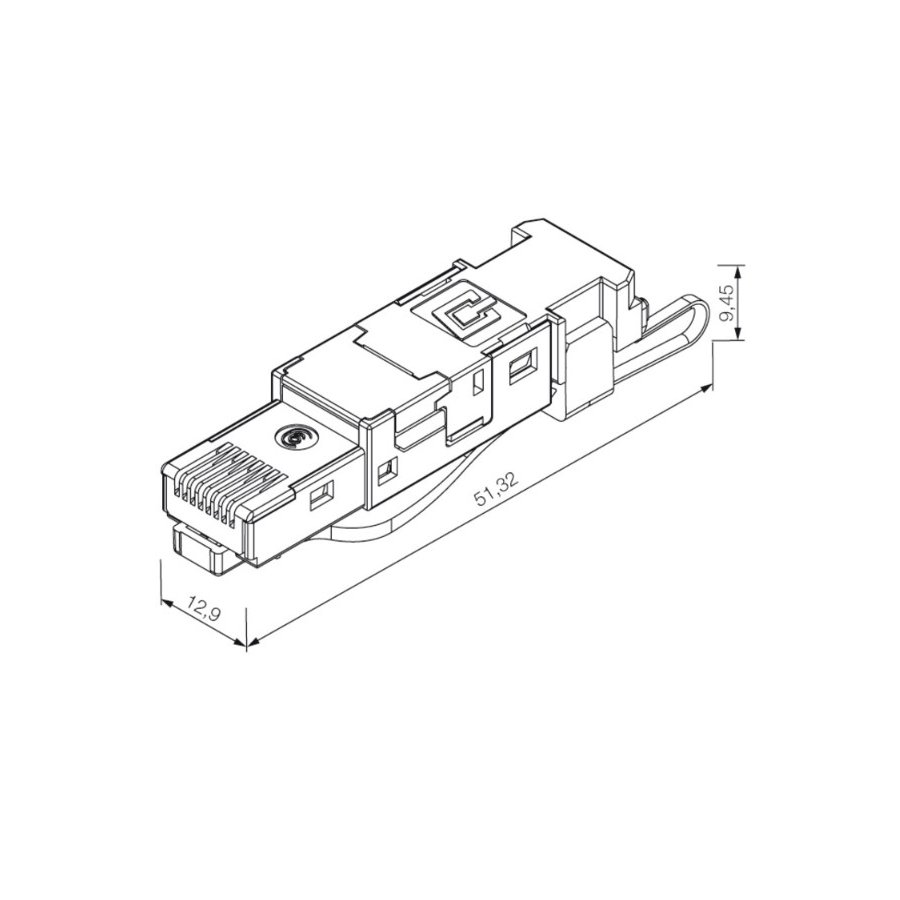

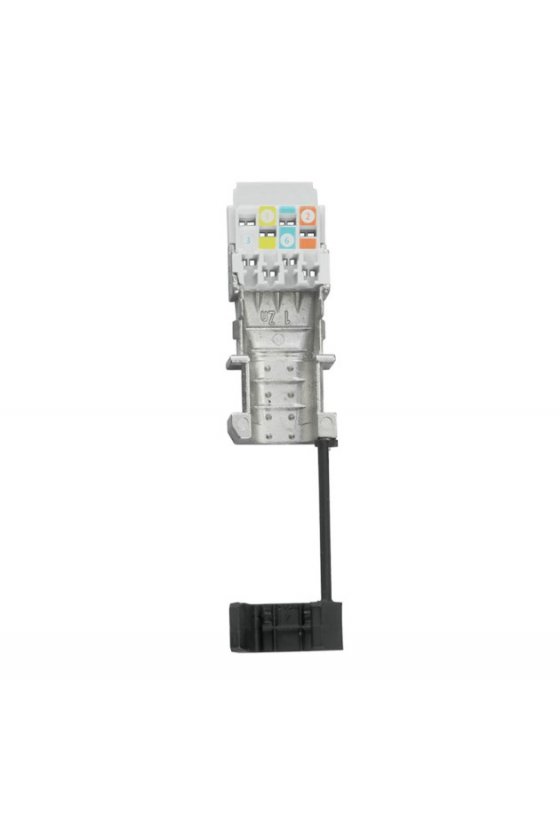

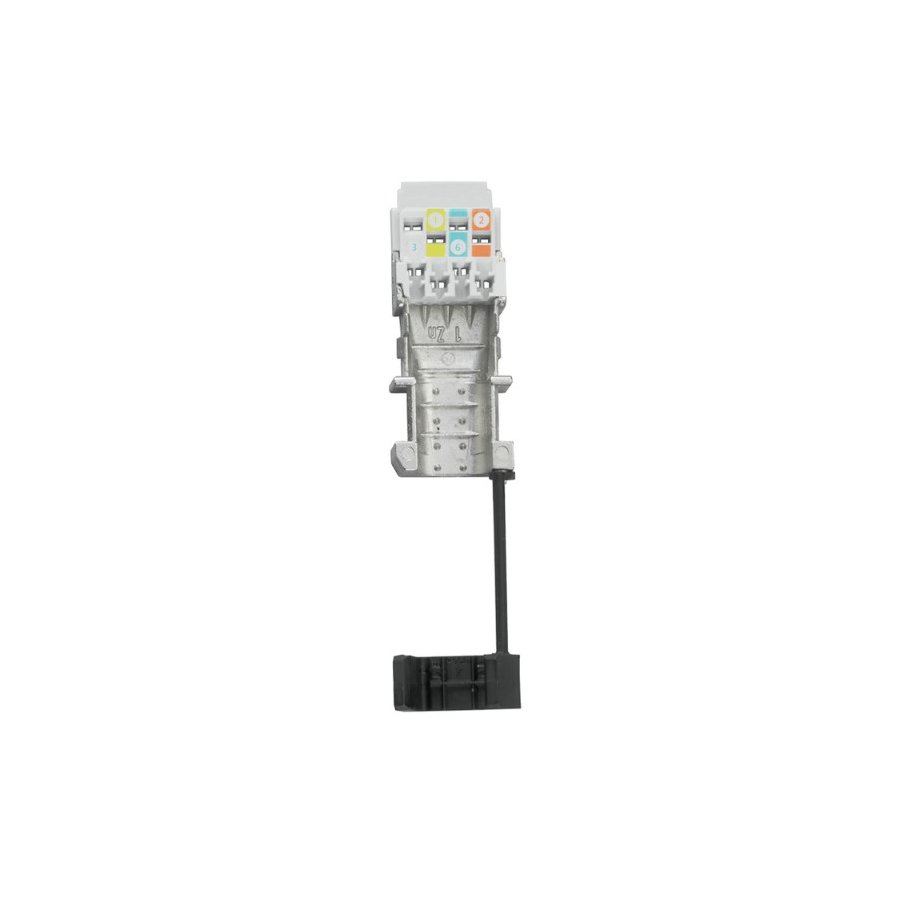

1132060000 Conector rj45 sin herramienta , IE-PS-RJ45-FH-BK-P

Referencia IE-PS-RJ45-FH-BK-P

Contenido: 10 Pzas.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Fire load	77 kJ
Halogen	No
Material locking lever	PA UL94-V0
Material strain relief	PA UL94-V0
Connection 1	RJ45
Connection 2	IDC
Wiring	4-core, PROFINET
Speed	10 GBit/s
Insulation cross-section, min.	0.85
Insulation cross-section, max.	1.6
Category	Cat.5 (ISO/IEC 11801)
Contact material	Phosphorus bronze
Connection diameter, solid	0.41...0.64
Conductor connection cross-section, solid (AWG)	AWG 26/1...AWG 22/1
Conductor connection cross-section, solid	0.13...0.32 mm²
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26/7...AWG 22/7
Wire connection cross section, finely stranded, min.	0.141 mm²
Conductor connection cross-section, flexible	0.14...0.35 mm²
Conductor connection cross-section, extremely flexible	, Approval of the cable by Weidmüller necessary
Conductor connection cross-section, extremely flexible (AWG)	, Approval of the cable by Weidmüller necessary
Note, very finely stranded line connection	Approval of the cable by Weidmüller necessary
MICE classification M	M₁
MICE classification I	I₁
MICE classification C	C₁
MICE classification E	E₃
Sheath diameter, min.	5.5 mm
Sheath diameter, max.	8.5 mm
Shielding	360° all-round enclosure
Protection degree	IP20
Insertion force	≤ 30 N
Material insulator	PA UL94-V0
Ability to reconnect	≥ 10 cycles (for the same or larger cross-section)
