Contenido: 1 Pza.

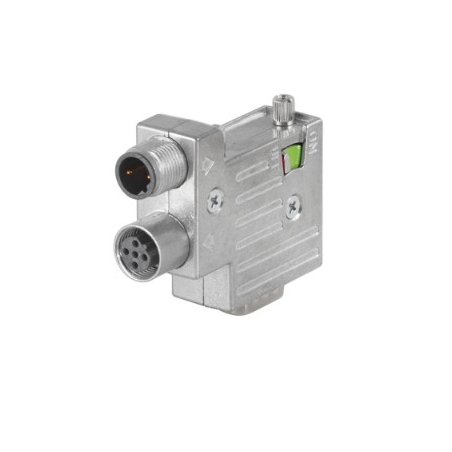

1140650000 Conector profi sub-d 90° m12 , PB-DP SUB-D M12 TERM
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
BUS interface | D-Sub 9-pole, Pin |
BUS, cable interface | M12 B-coded male and female connector, pins 2 and 4 assigned |
Data rate | 12 MBit/s |
Housing main material | ZnAl |
Humidity | Max. 75% at +25°C, non-condensing |
Interlock | UNC4-40 |
Outgoing elbow | 90° |
Plug-in connector and pin assignment | In accordance with the PROFIBUS specification |
Plugging cycles | ≥ 200 |
Programming interface | No |
Protection degree | IP30 |
Temperature range of housing | -20...+70 ° C |
Terminating resistor available | Yes |
