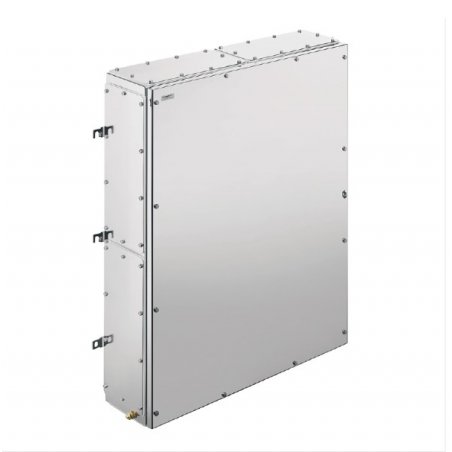

1195600000 Caja de acero inoxidable 98x74x20cm , KTB MH 987420 S4E0

Referencia KTB MH 987420 S4E0

Contenido: 1 Pza.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

AF size	10 mm
Access opening: height	927 mm
Access opening: width	681 mm
Areas of use	Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Dimension of box	925x1130x240
Enclosure attachment	4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Flange plate	No
Impact resistance	7 J ATEX version, 10 J version standard
Integral fixing	4, 6 or 9 stud bolts M6 inner (female) thread
Lid attachment	4 hinges and M6 hex-head slotted screws SW10
Material	Stainless steel 1.4404 (316L)
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Max. payload	290 kg
Note: protection class	If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Number of lid screws	12
Opening angle lid	130 °
Operating temperature, max.	135 °C
Operating temperature, min.	-60 °C

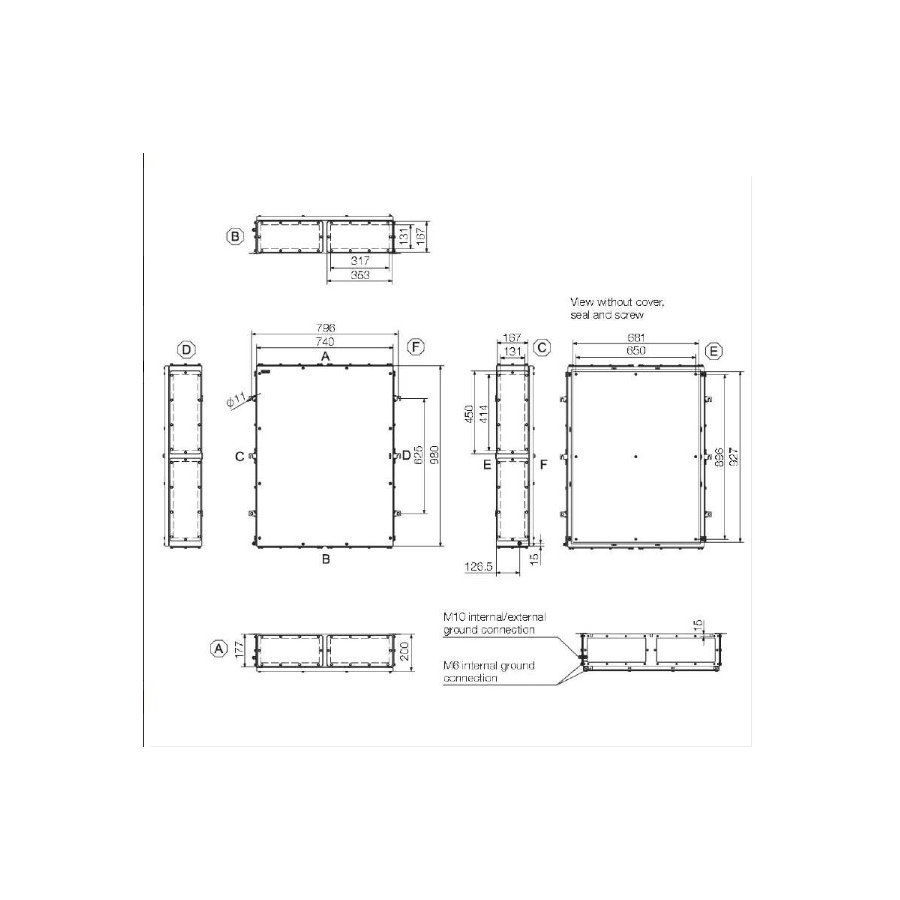

Overall dimensions	980 x 791 x 215
Position PE bolts	Enclosure side C
Protection class (UL)	Type 3, Type 4x, Type 12
Protection degree	IP66, IP67
Seal material	Silicone
Standards	DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Surface finish	electropolished
Torque for lid screws	2.5 Nm
