Contenido: 50 Pzas.

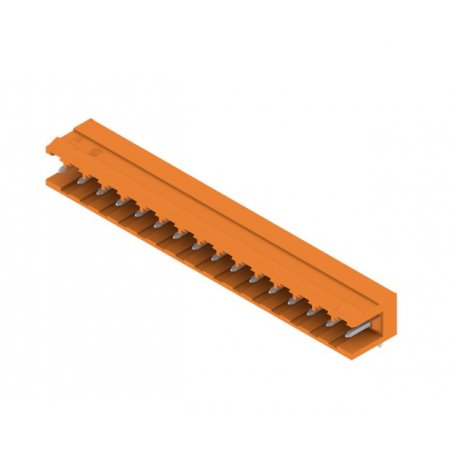

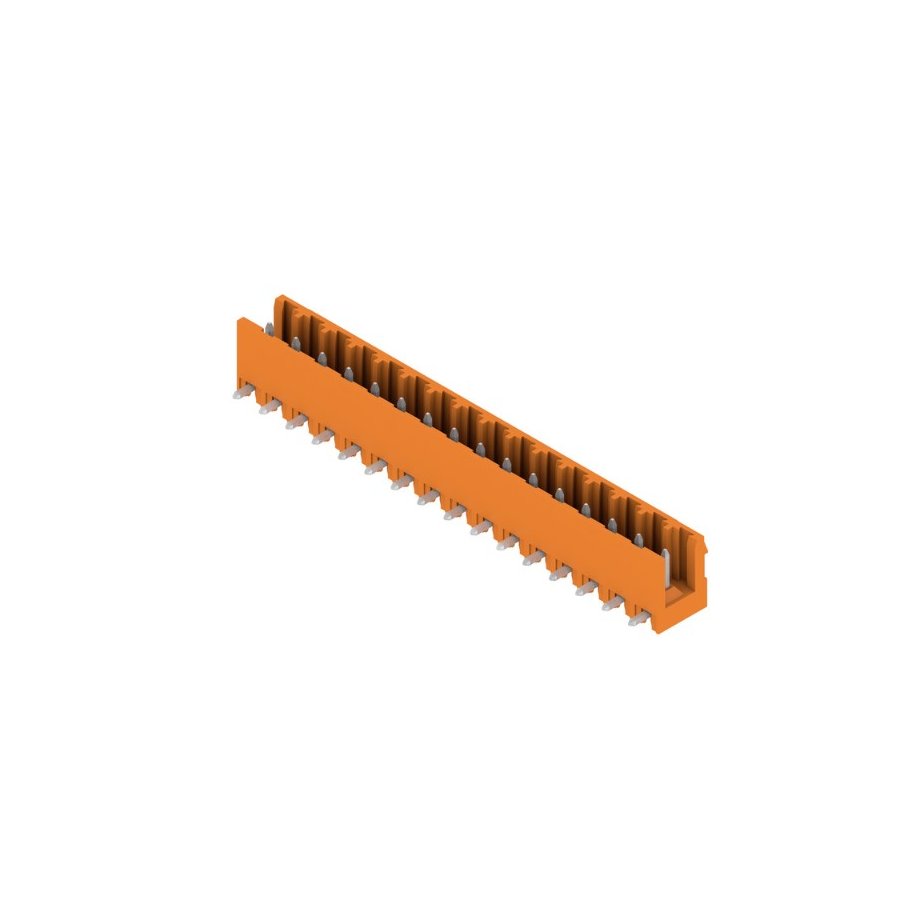

1239460000 Conector macho de ci , SLA 16/90 3.2SN OR BX
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

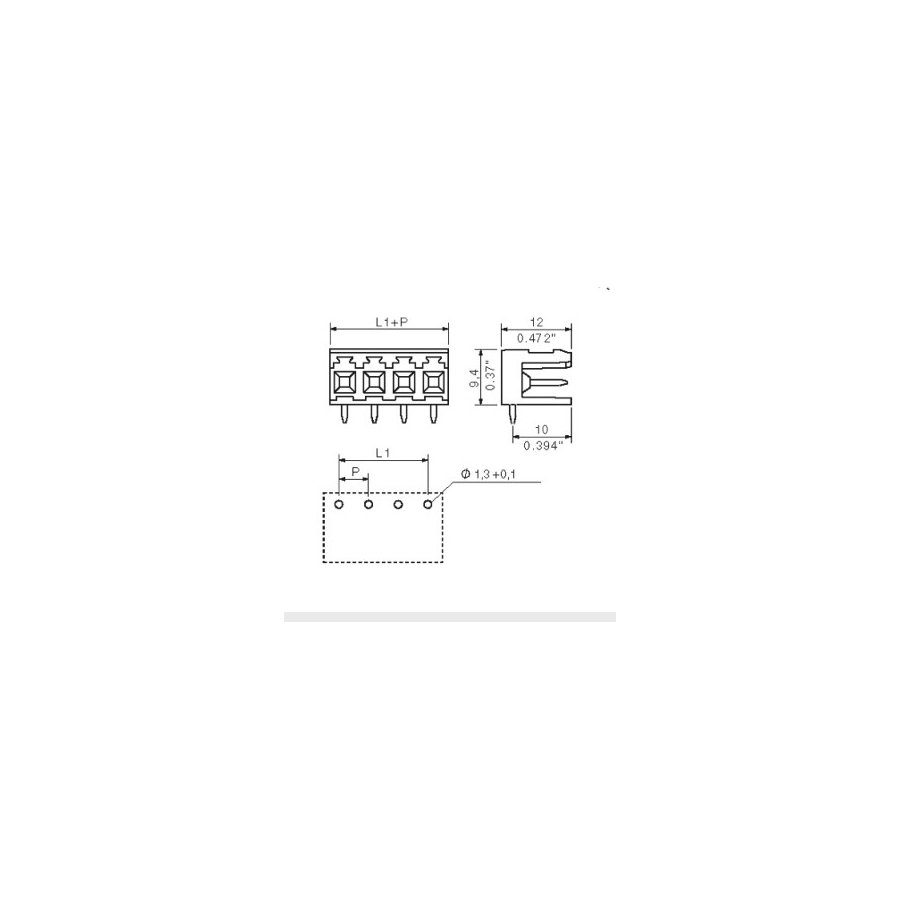

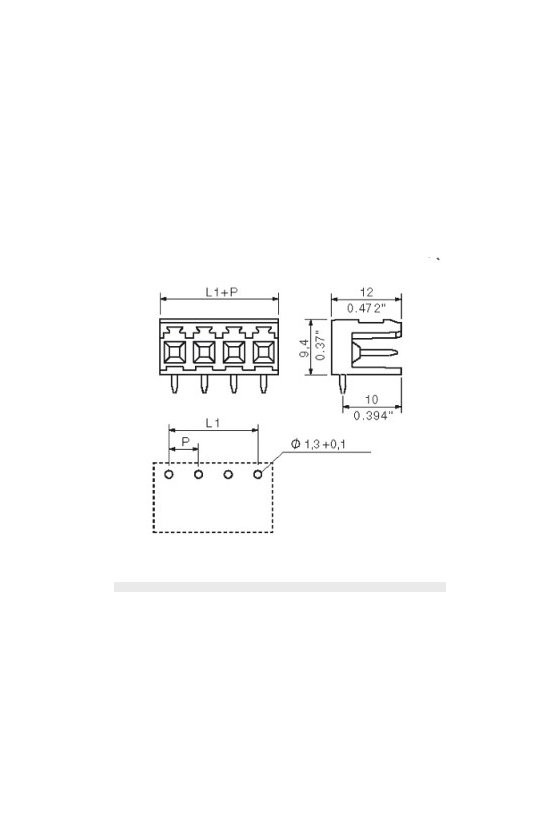

Product family | OMNIMATE Signal - series BLA/SLA 5.08 |
Type of connection | Board connection |
Mounting onto the PCB | THT solder connection |
Pitch in mm (P) | 5.08 mm |
Pitch in inches (P) | 0.2 inch |
Outgoing elbow | 90° |
Number of poles | 16 |
Number of solder pins per pole | 1 |
Solder pin length (l) | 3.2 mm |
Solder pin dimensions | d = 1.2 mm, Octagonal |
Solder eyelet hole diameter (D) | 1.3 mm |
Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
L1 in mm | 76.2 mm |
L1 in inches | 3 inch |
Number of rows | 1 |
Pin series quantity | 1 |
Touch-safe protection acc. to DIN VDE 57 106 | Safe from back-of-hand touch |
Volume resistance | 5.50 mΩ |
Can be coded | Yes |
Pulling force/pole, max. | 2 N |
