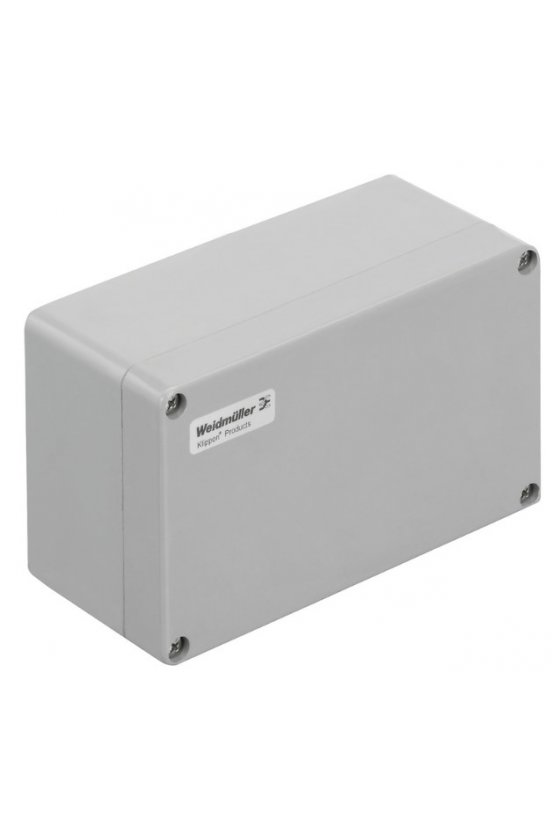

1305880000 Caja poliester con fibra de vidrio , KLIPPON POK 122209

Referencia KLIPPON POK 122209

Contenido: 1 Pza.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Access opening: height	111.22 mm
Access opening: width	111.22 mm
Areas of use	Harbour facilities, Machine construction, Process industry, Transportation
Enclosure attachment	Installation through the housing rear wall, Fixing lugs
Flange plate	No
Impact resistance	5 J version standard
Lid	Yes
Lid attachment	Slotted/Phillips screws
Material	Glass fibre-reinforced polyester
Material thickness of cover	5 mm
Material thickness of enclosure	4.39 mm
Max. payload	10.56 kg
Number of lid screws	4
Operating temperature, max.	100 °C
Operating temperature, min.	-40 °C
Protection class (UL)	Type 4, Type 4x
Protection degree	IP66
Required tool	9008540000
Seal material	Chloroprene
Standards	DIN EN 62208 - Empty enclosure standard, DIN 4102-12
Surface finish	untreated, polished
