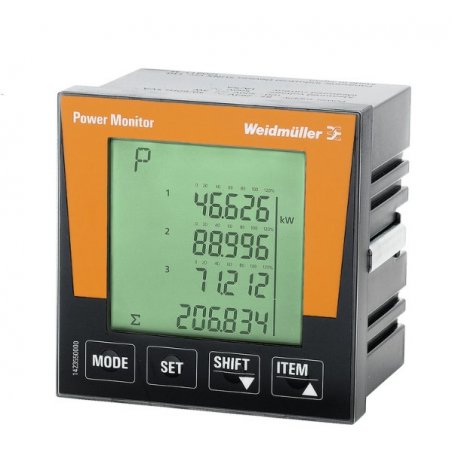

1423550000 Medidor de energia , POWER MONITOR

POWER MONITOR

Contenido: 1 Pza.

1423550000 Medidor de energia , POWER MONITOR

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Technical data

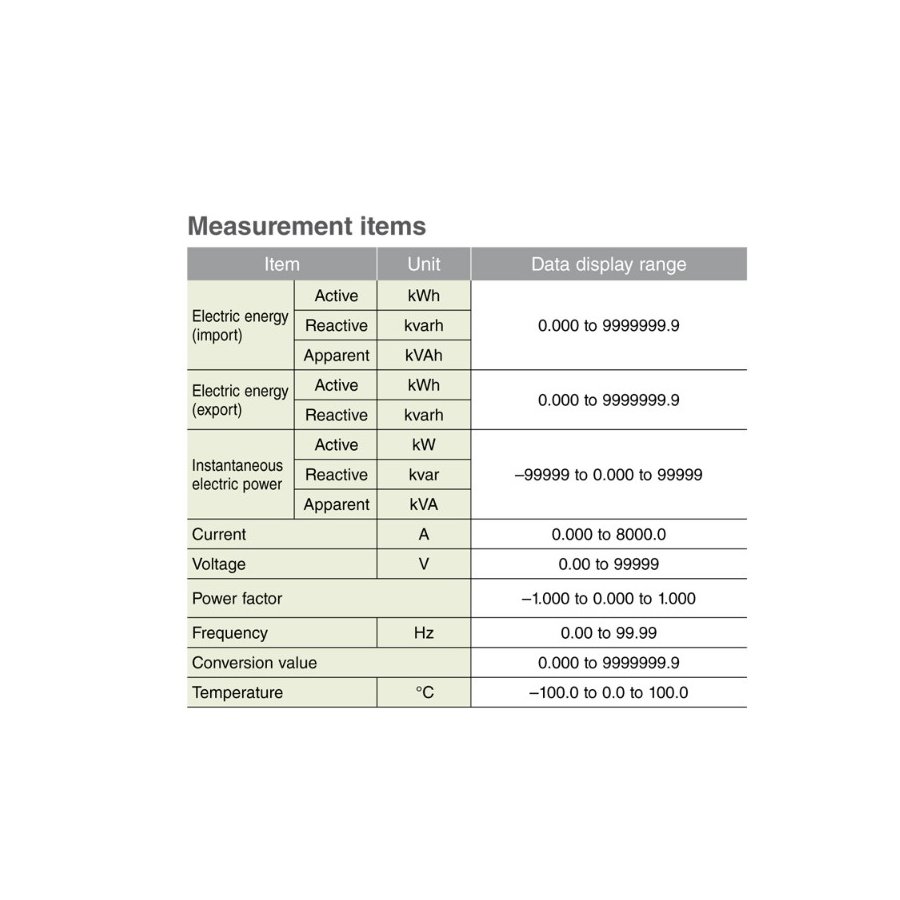

Display value Apparent power, Effective power, Reactive power, Power factor, Voltage, Current, Frequency, Temperature
Pollution severity 2
Protection degree Front panel: IP51, Enclosure: IP20
Rated current 1 / 5 A
Standards IEC 61010-1
Measurement range, voltage L-N, AC 0…250 V (1P3W), 0…289 V (3P4W)
Measurement range, voltage L-L, AC 0…500 V
Surge voltage category II
Voltage supply 100…240 V AC, 100...300 V DC
Supply voltage 230 V
Three-wire system Yes
Four-wire system Yes
Sampling frequency 50/60 Hz 1,024 kHz
Measurement result per second 100,000
Residual current measuring No
Current-measuring channels 3
Measuring accuracy for voltage 1 %
Measuring accuracy for current 0.5 %
Measurement accuracy for active energy (kWh, …/5 A) 1% for the calculated values
Clock Yes
