IMAGEN DE REFERENCIA

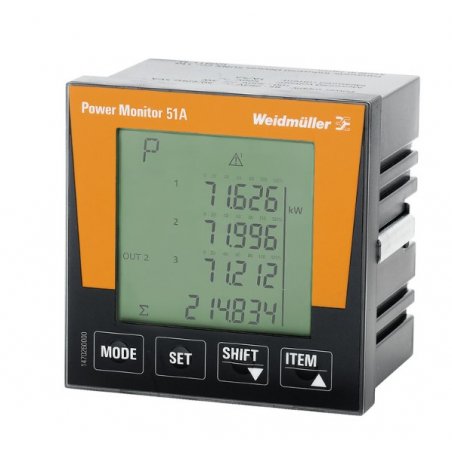

1470260000 Power monitor , POWER MONITOR 51A

POWER MONITOR 51A

Contenido: 1 Pza.

1470260000 Power monitor , POWER MONITOR 51A

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Technical data

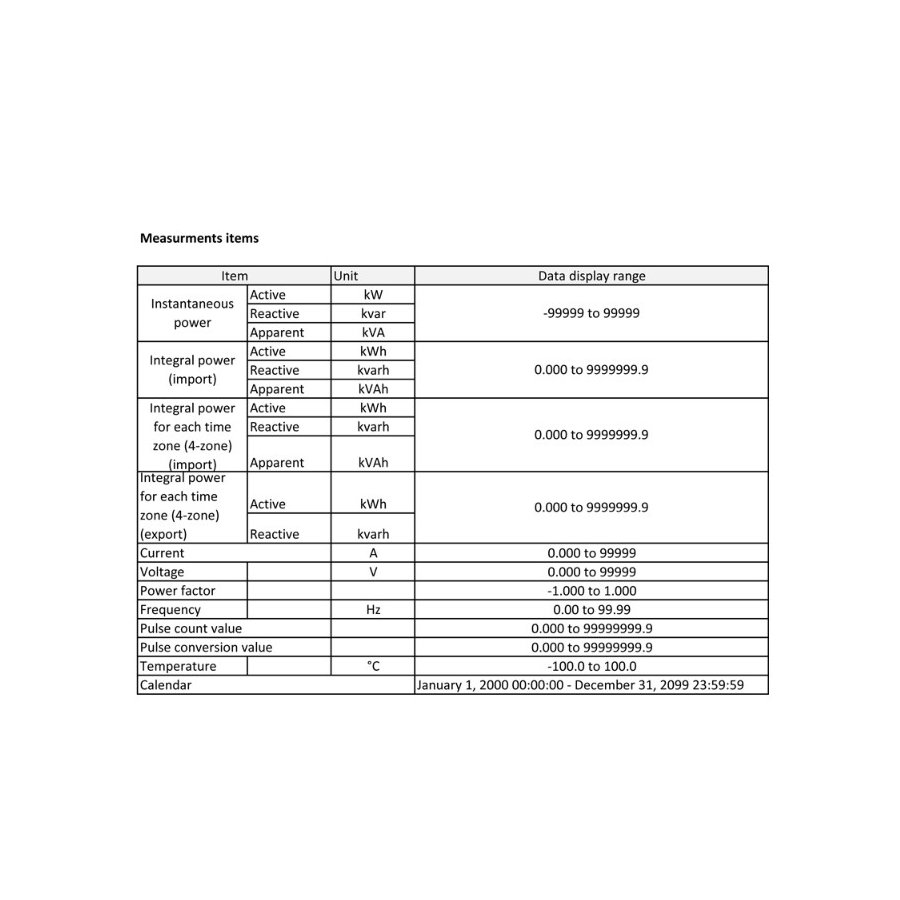

Display value Apparent power, Effective power, Reactive power, Power factor, Voltage, Current, Frequency, Temperature, Voltage unbalance, Current unbalance, THD-I, THD-U, Voltage harmonic, Current harmonic
Pollution severity 2
Protection degree Front panel: IP51, Enclosure: IP20
Rated current 1 / 5 A
Standards IEC 61010-1
Measurement range, voltage L-N, AC 0…250 V (1P3W), 0…289 V (3P4W)
Measurement range, voltage L-L, AC 0…500 V
Surge voltage category II
Voltage supply 85...264 VAC, 100...300 V DC
Supply voltage 230 V
Three-wire system Yes
Four-wire system Yes
Sampling frequency 50/60 Hz 1,024 kHz
Measurement result per second 100,000
Residual current measuring No
