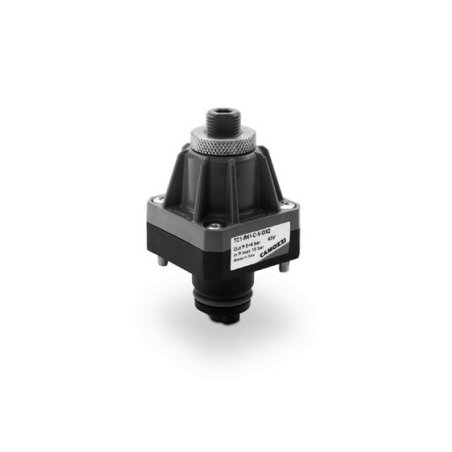

The cartridge design and the compact size allow the regulator to be plugged in a proper seat, making the installation easier and reducing the assembly time. To produce the new TC regulator, materials have been analized and chosen on the basis of their suitability with the contact medium. The body in PPS and the seals in FKM ensure thus full compatibility with a wide range of gaseous fluids.

Construction compact with pre-formed diaphragm

Materials see the TABLE OF MATERIALS

Ports cartridge construction in manifold - G1/8 or 1/8NPTF (aluminium body version only)

Mounting in-line or cartridge (any position)

Operating temperature -5°C ÷ 50°C

Inlet pressure 0 ÷ 10 bar

Outlet pressure 0 ÷ 0.5 bar 0 ÷ 2 bar 0 ÷ 3 bar 0 ÷ 4 bar

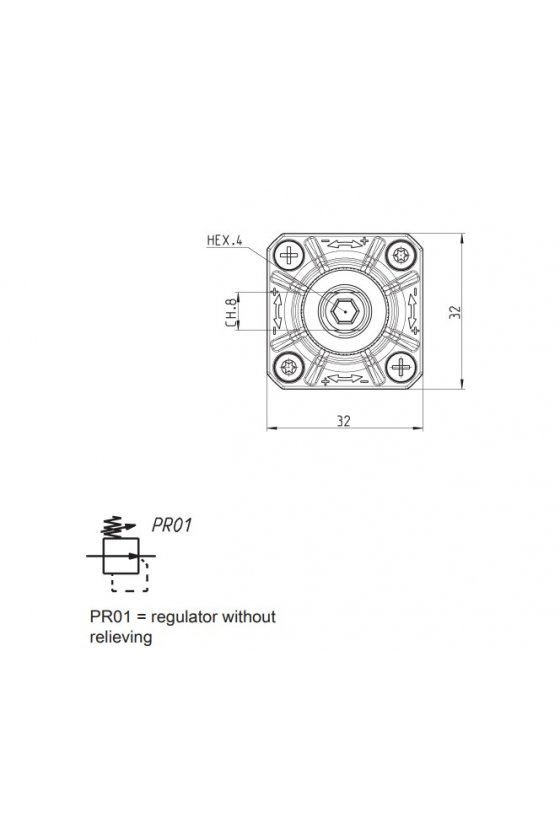

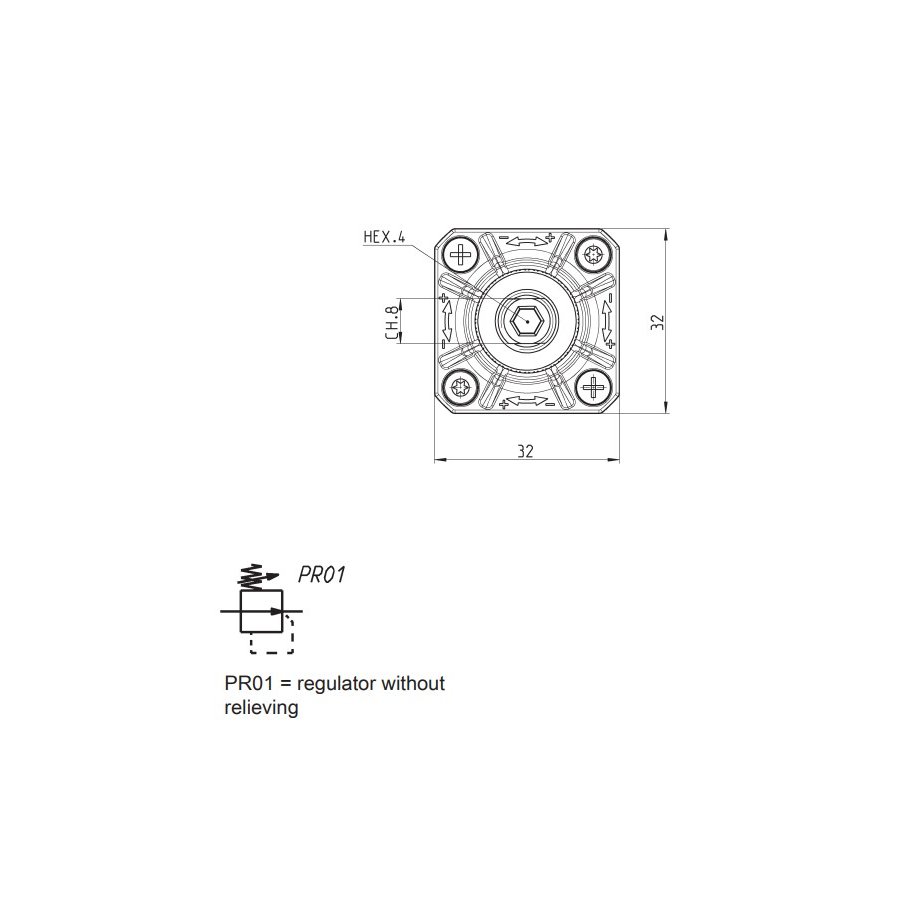

Overpressure exhaust without relieving

Nominal flow see the FLOW DIAGRAMS

Medium air, inert and medical gases, OXYGEN Repeatability ±0.2% FS
