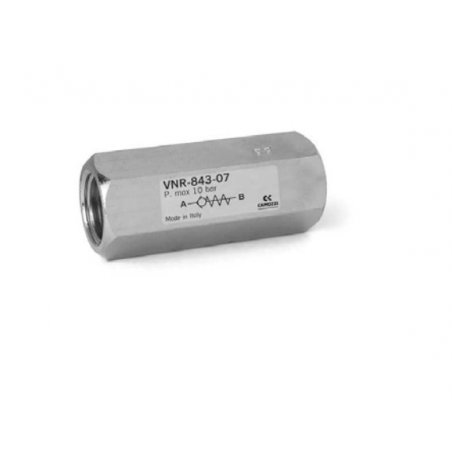

Valvula antirretorno check 1" VNR-201-01

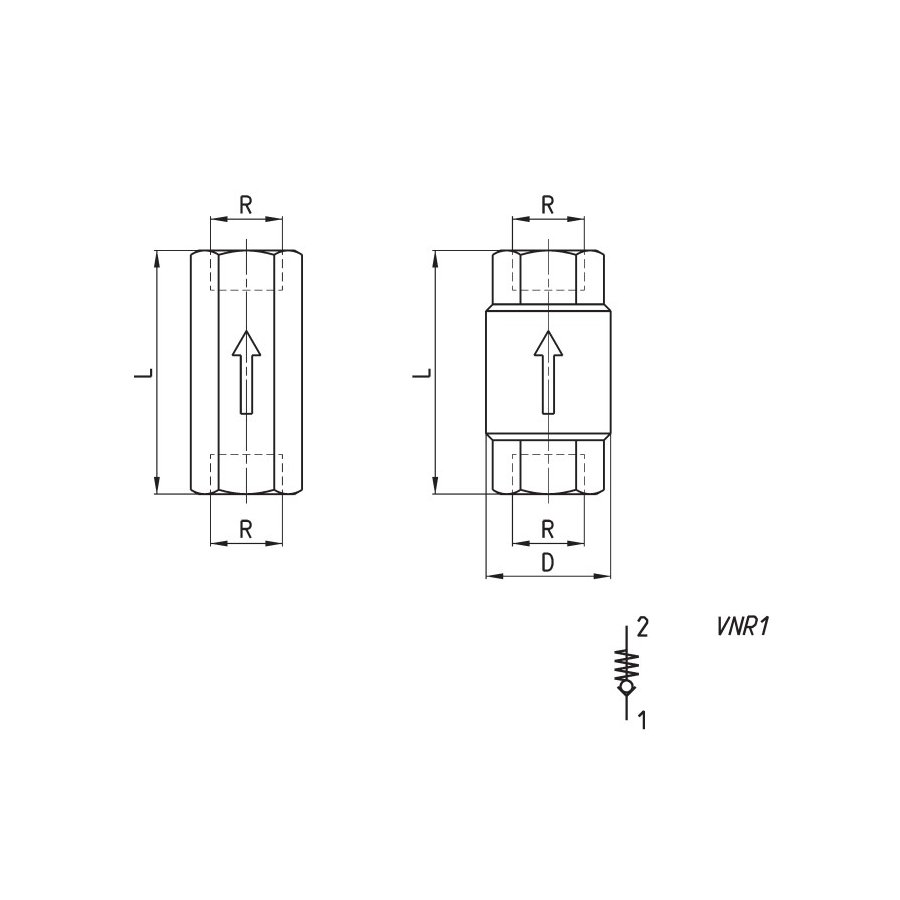

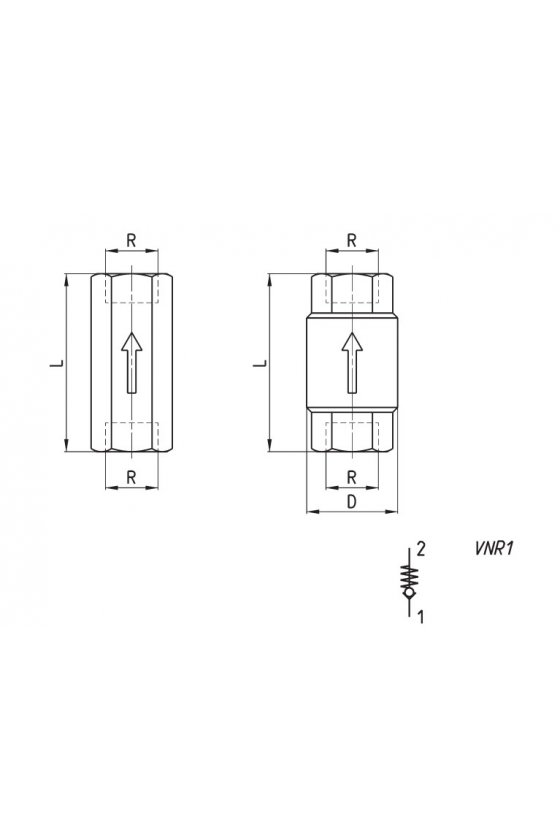

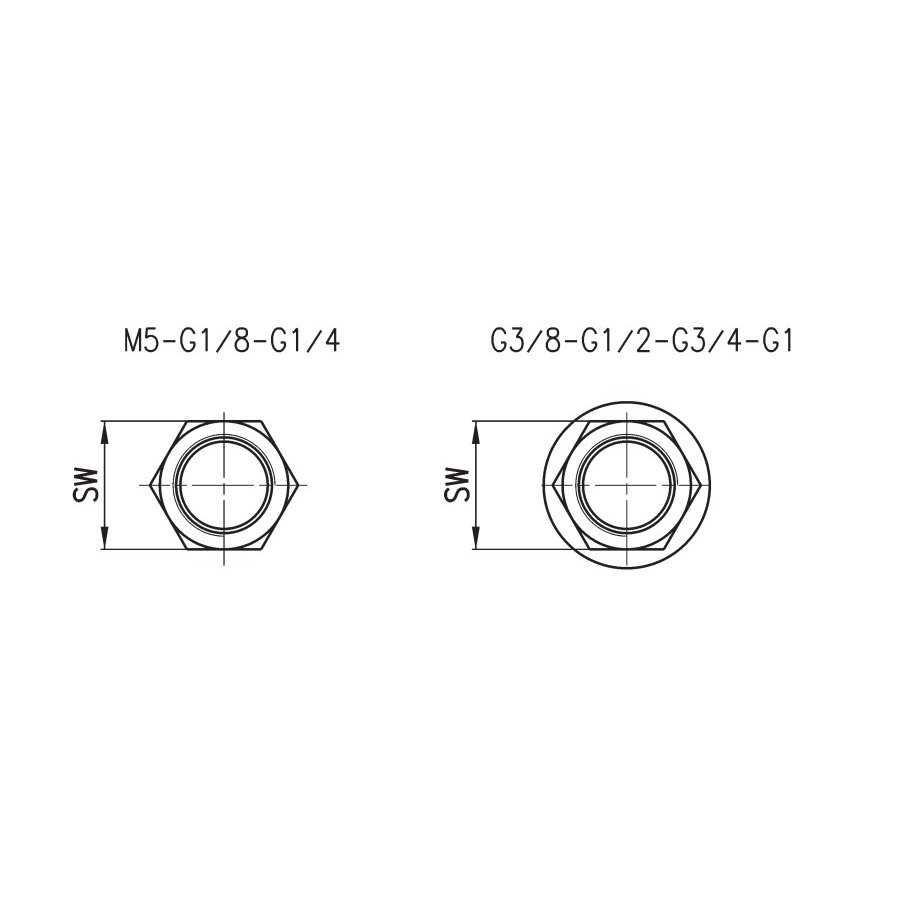

R L SW D Flow 6 bar ΔP1(Nl/min) Min. operating pressure (bar) Max working pressure (bar)
G1 74.5 40 48 13000 0.06 25
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Valve group automatic valves
Construction poppet-type
Materials brass body stainless steel spring NBR/FKM seals (for version 6580)
Mounting in any position
Dimensions thread version M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1
Dimensions tube version Ø4; Ø6; Ø8
Operating temperature 0 °C ÷ 80 °C; NBR (with dry air -20 / +80 °C ) FKM (with dry air - 20 / +200 °C)
Medium filtered air without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
