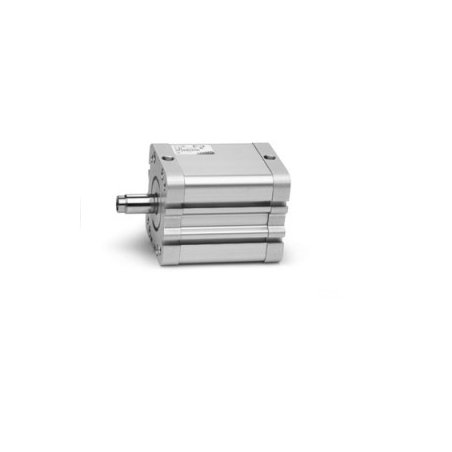

32 SERIES

M VERSION
M = male rod thread, mounted with rod nut Mod. U
F = female rod thread
R = antirotation with flange (not for single-acting version)

2 OPERATION                                                                         PNEUMATIC SYMBOLS

1 = single-acting, front spring                                                  CS06
2 = double-acting                                                                   CD08
3 = double-acting, through-rod                                                CD12
4 = single-acting, rear spring                                                   CS08

A MATERIALS
A = anodized aluminium body, end blocks and piston, PU seals (rod, end-blocks OR and piston)

032 BORES

020 = 20 mm - 025 = 25 mm - 032 = 32 mm - 040 = 40 mm
050 = 50 mm - 063 = 63 mm - 080 = 80 mm - 100 = 100 mm

A CONSTRUCTION
A = standard

050 STROKE (see the table)

 = standard
S = special
V = FKM rod seal
W = high temperatures (double-acting, non-magnetic with FKM seals for high temperatures up to 140°C)
