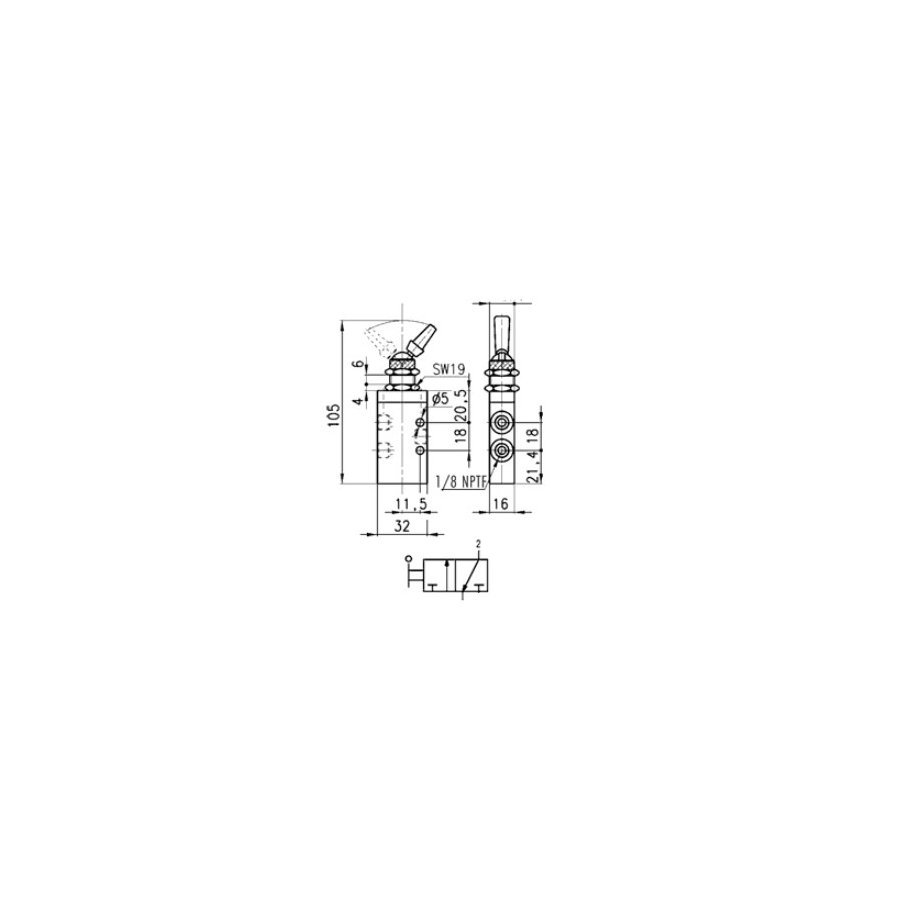

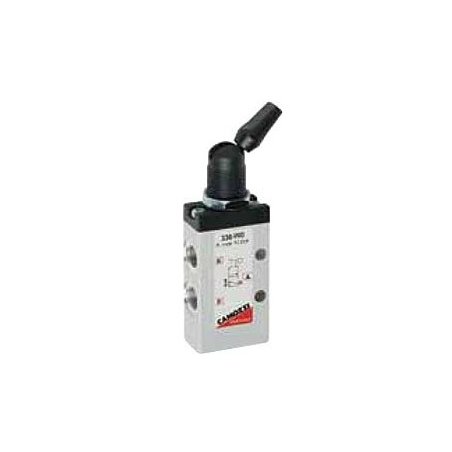

Válvula de 3/2 con interruptor biestable 338-990TF

Referencia 338-990TF

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Valve group	3-way/2-position, 5-way/2-position, 5-way/3position
Construction	Spool type Series 3, Poppet type Series 1
Mounting	Mounting holes in valve body
Materials	Anodyzed body, Stainless steel spool, Buna-N seals, Brass Poppet (Series 1)
Threaded port sizes	1/8" NPTF
Installation	Manifold, or single panel mount
Operating temperature	32°F - 175°F (dry air necessary down to -4°F)
Fluid	Filtered air (25 micron or less recommended)
Lubricant	Not required; otherwise, only oil compatible with Buna-N, ( 3° - 10° E) (ISOVG32 grade; 32 center strokes)
Operating pressure	0 - 10 bar (0 - 145 psi) (down to -.9 bar vacuum; 28" Hg with series 3)
Nominal pressure	6 bar (87 psi)
Nominal flow	*Qn Series 3: 1/8" = 700 NL/min. (24.7 SCFM) Series 1: 1/8" = 500 NL/min. (17.65 SCFM)
Nominal diameter	1/8" = 5 mm
Cv Rating	Series 3: 1/8" = 0.73 Series 1: 1/8" = 0.52
