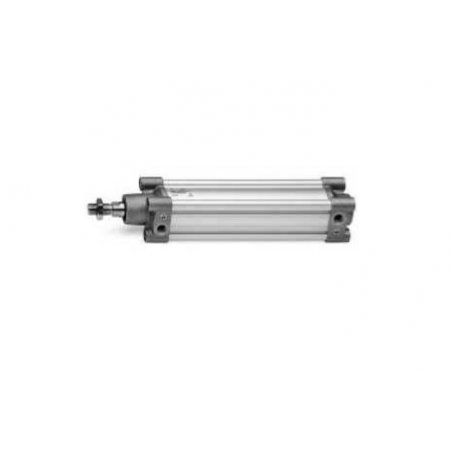

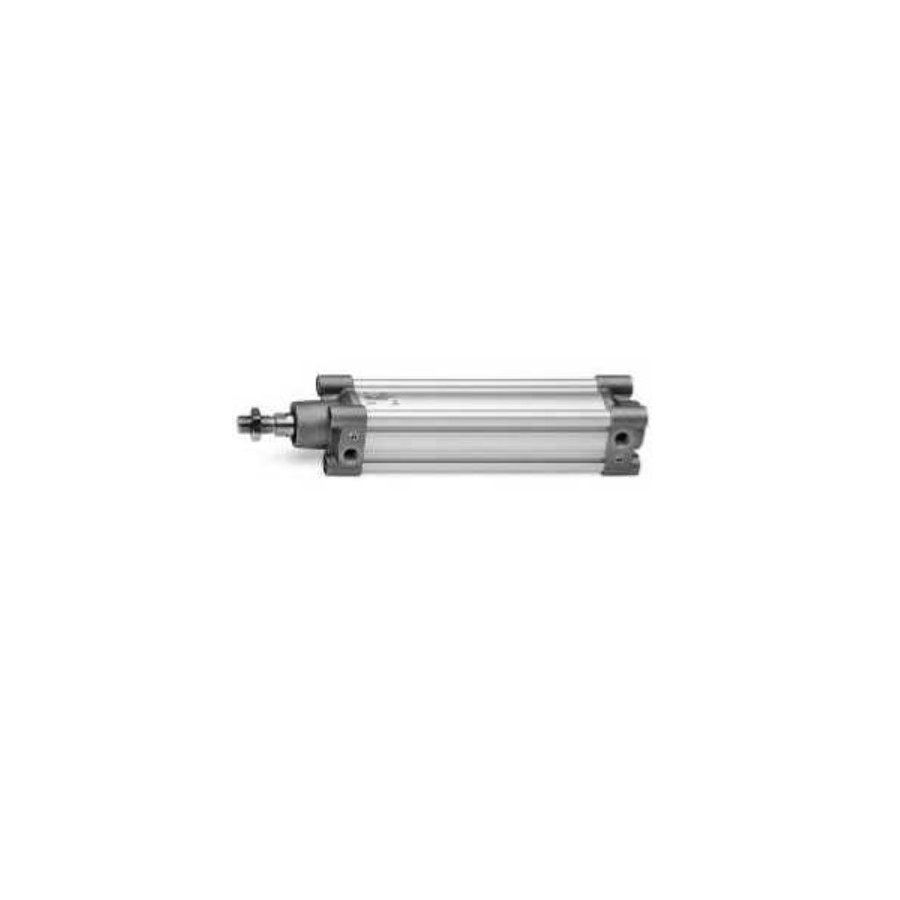

Cilindro redondo de. magnetico serie 63 63MT2C125F0600S0

0 Reseñas(s)

Referencia 63MT2C125F0600S0

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Series general data

Type of construction	profile (with screws) and round tube (with tie-rods)
Design	ISO 15552
Operation	single and double-acting
Type of mounting	with front / rear flange, foot mounting, with front / rear / centre / swivel trunnion
Stroke min - max	10 ÷ 2500 mm
Operating temperature	standard and low friction: 0°C ÷ 80°C (with dry air -20°C) high temperatures (version W): 0°C ÷ 150°C (with dry air -20°C) low temperatures (version Z): -40°C ÷ 60°C (with dry air -40°C) low temperatures (version Y): -50°C ÷ 60°C (with dry air -50°C)
Storage temperature	0°C ÷ 80°C (with dry air -20°C)
Operating pressure	1 ÷ 10 bar (standard, high and low temperatures) 0.1 ÷ 10 bar (low friction)
Speed	10 ÷ 1000 mm/sec, no load (standard, high and low temperatures) 5 ÷ 1000 mm/sec, no load (low friction and uniform movement)
Fluid	filtered air in class 7.8.4, according to ISO 8573-1. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Use with sensors	model CSH

63 SERIES

VERSION:
M = standard, magnetic
L = low friction, magnetic

P CONSTRUCTION:
T = round tube
P = profile

2 OPERATION: PNEUMATIC SYMBOLS
1 = single-acting, front spring CS07
2 = double-acting CD08
6 = double-acting, through-rod CD09
7 = single-acting, through-rod CD10
9 = single-acting, rear spring CD11
CD13
CS11
CS14

C CUSHIONING:
N = no cushioning
C = cushioning on both sides
F = front cushioning
R = rear cushioning

050 BORE:
032 = 32 mm
040 = 40 mm
050 = 50 mm
063 = 63 mm
080 = 80 mm
100 = 100 mm
125 = 125 mm

A CONSTRUCTIVE TYPE:
A = standard with rod nut
RL = cylinder with rod lock
F = cylinder with centre trunnion

0200 STROKES:
10 ÷ 2500 mm

TEMPERATURE RANGE:
= standard
W = high temperatures (150°C)
Z = low temperatures (-40°C)
Y = low temperatures (-50°C)

RESISTANCE TO CORROSION:
= standard (see the table of materials on page 1/1.28.03)
C1 = rod nut AISI 304 stainless steel, rod AISI 304 stainless steel (other materials: see the table of materials on page 1/1.28.03)
