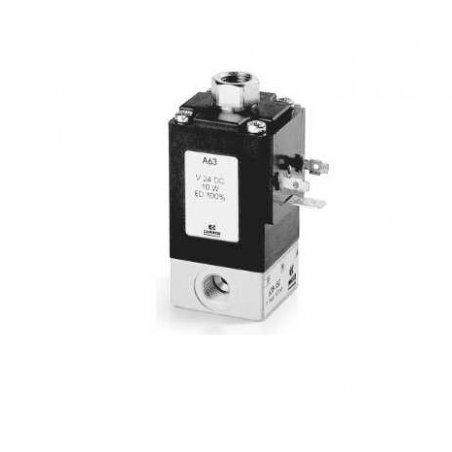

Electroválvula 3/2 normalmente abierto de 110vca 648-150-A6D

Referencia 648-150-A6D

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

TECHNICAL FEATURES
Function Operation Pneumatic connections Nominal diameter Nominal flow Flow coefficient kv (l/min) Operating pressure Operating temperature Media Response time Manual override Installation	2/2 NC - 3/2 NC - 3/2 NO direct acting poppet type G1/8, G3/8 threads - ø4 fitting - CNOMO interface 2 … 4 mm 80 … 350 Nl/min (air @ 6 bar ΔP 1 bar) 1.2 … 5.4 0 ÷ 4 … 15 bar 0°C ÷ 60°C (seals in FKM) / -50°C ÷ +50°C (seals in NBR) filtered air, class 5.4.4 (5.1.4 for versions -50°C) according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas ON <15 msec - OFF <15 msec see tables in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body Seals Internal parts	nickel-plated brass - anodized aluminium FKM (NBR for versions -50°C) stainless steel
ELECTRICAL FEATURES
Voltage Voltage tolerance Power consumption Duty cycle Electrical connection Protection class	12 … 110 V DC - 24 … 230 V AC 50/60 Hz ±10% (DC) - +10% ÷ -15% (AC) 10 W (DC) - 19 VA (inrush AC), 12 VA (holding AC) ED 100% H (180°C) with connector DIN EN 175 301-803-A IP65 with connector
