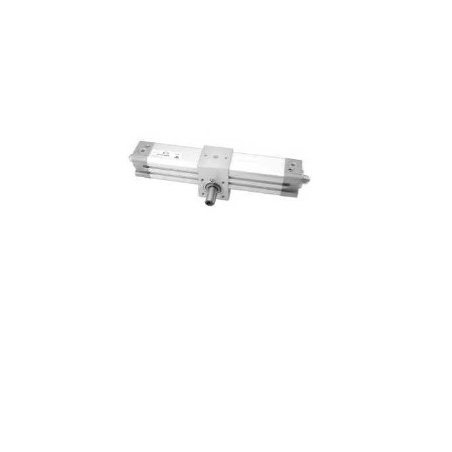

Cilindro rotativo magnetico con amortiguador serie 69 69-063/180-M

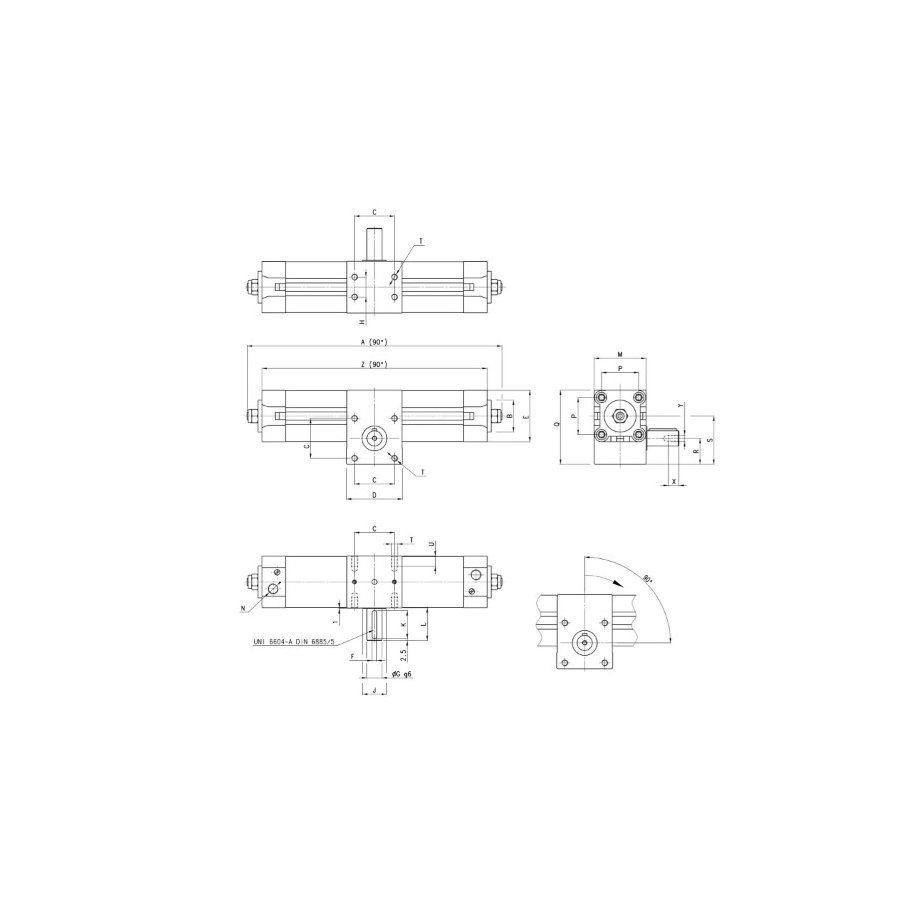

Ø | A | B | ٭ | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | Y | X | Z |
63 | 357 | 45 | 74,5 | 60 | 75 | 75 | 8 | 24 | 35 | 30 | 35 | 41 | 75 | G3/8 | 56,5 | 110 | 37 | 70,8 | M8 | 13 | M8 | 19 | 325 |
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Type of construction | with internal tie-rods |
Operation | double-acting |
Materials | end blocks / tube / body = AL rack = steel rack guide shoe = acetal resin pinion = hardened steel seals = NBR |
Type of mounting | threaded holes in the central body by means of brackets for ISO 15552 cylinders |
Bore | ø 32, 40, 50, 63, 80, 100, 125 |
Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
Standard rotation angles | 90°, 180°, 270°, 360° (others on request) |
Bearings | Ball bearings ( ø 32 mm teflon bronze guide) |
Operating pressure | 1 ÷ 10 bar |
Fluid | filtered air class 7.8.4 according to ISO 8573-1. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted |
