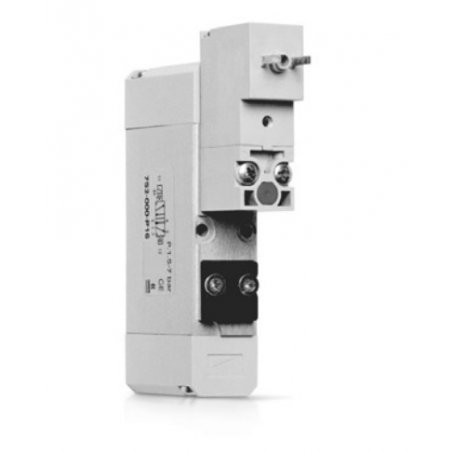

Electromechanical device used to control the passage of a fluid in an installation. Pneumatic valves are mechanical devices for regulation and control of air. Among its main functions are to start, stop or regulate the passage of gases. Pneumatics is the technology that uses compressed air to operate different mechanisms. In the industrial sector it is used in multiple processes and applications.

GENERAL DATA

Construction balanced spool type

Valve functions 5/2 - 5/3-way CC CO CP

Materials AL body, spool base, polyamide endcovers, NBR seals

Mounting by means of screws on the base

Ports on sub-base

Operating temperature 0° C min. +50° C max

Fluid filtered air (5 micron or less), without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted.

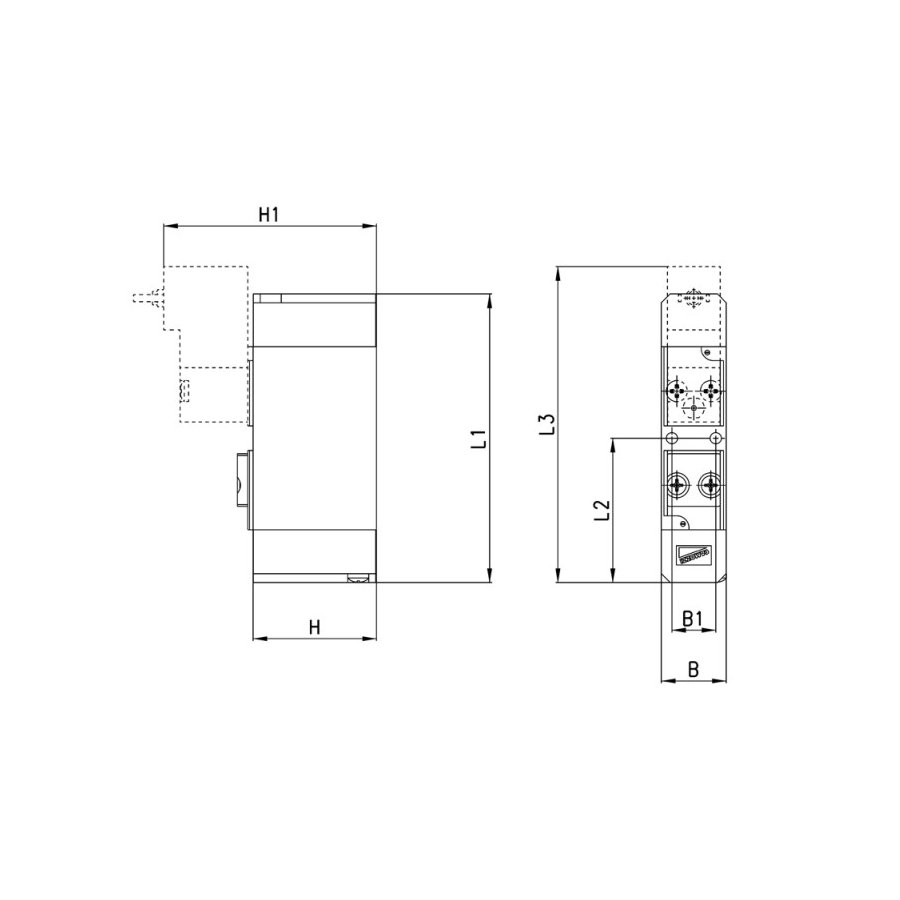

Size 26 mm 18 mm

Installation in any position

Operating pressure P. max 7 bar

Nominal pressure 6 bar

Nominal flow Qn Size 26 mm = 900 Nl/min Qn Size 18 mm = 450 Nl/min

Voltage see coding

Voltage tolerance ± 10%

Power consumption 2W

Class of insulation class F

Protection IP54 (IP65 with connector DIN 40050)
