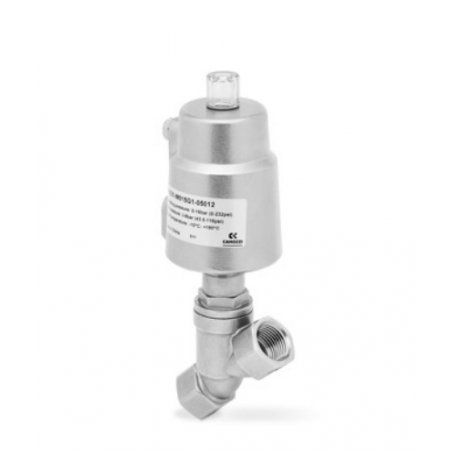

AS SERIES

X TYPE OF ACTUATOR
X = metal actuator

BODY MATERIAL
1 = 304 stainless steel (DN 100)
2 = 316 stainless steel (DN8 ÷ DN80)

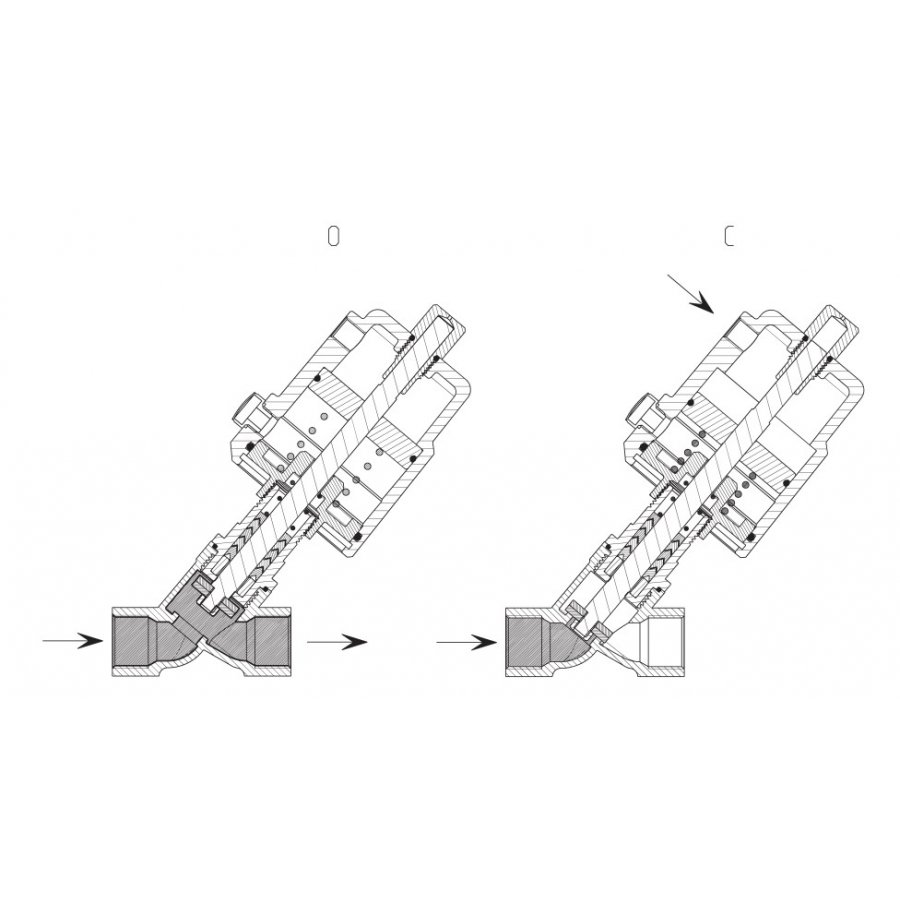

 NUMBER OF WAYS - FUNCTIONS
0 = 2/2-way NO
1 = 2/2-way NC
3 = 2/2-way DA (Double Acting)

015 NOMINAL DIAMETER
008 = DN 8
010 = DN 10
015 = DN 15
020 = DN 20
025 = DN 25
032 = DN 32
040 = DN 40
050 = DN 50
065 = DN 65
080 = DN 80
100 = DN 100 - only for flanged version with NC and DA function and pressure under the seat

G1 BODY CONNECTION
G1 = BSP thread DIN 228-1
T1 = BSPT thread DIN 2999-1
N1 = NPT thread ASME B1.20.1
H7 = welding ends DIN 11850-2 / DIN 11866-A
H8 = welding ends DIN 11850-3
K7 = tri-clamp ISO 2852
F2 = flange DIN 2543

040 ACTUATOR DIMENSION
040 = Ø40 mm
050 = Ø50 mm
063 = Ø63 mm
090 = Ø90 mm
125 = Ø125 mm

1 ACTUATOR MATERIAL
1 = 304 stainless steel
8 = aluminium

2 SEALS
2 = for standard temperatures -10 ÷ 180 °C
3 = for high temperatures 25 ÷ 220 °C

OPTIONS =
none

PS1 = NPN type proximity switch - NO contact - 10 ÷ 30 V DC power supply
PS2 = NPN type proximity switch - NC contact - 10 ÷ 30 V DC power supply
PS3 = PNP type proximity switch - NO contact - 10 ÷ 30 V DC power supply
PS4 = NPN type proximity switch - NC contact - 10 ÷ 30 V DC power supply
PS5 = SCR type proximity switch - NO contact - 20 ÷ 250 V AC power supply
PS6 = SCR type proximity switch - NC contact - 20 ÷ 250 V AC power supply
SL1 = stroke limiter for Ø50 - Ø63 mm actuators
SL2 = stroke limiter for Ø90 mm actuators
PI1 = position indicator for Ø40 - Ø50 - Ø63 - Ø90 mm actuators
PI2 = position indicator for Ø125 mm actuators
