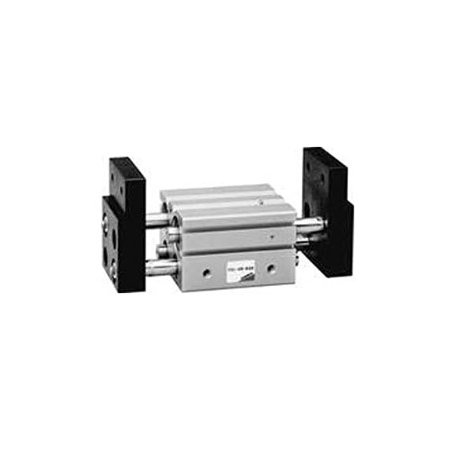

Pinza neumatica paralela apertura CGL-25-050

0 Reseñas(s)

Referencia CGL-25-050

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

GENERAL DATA

Operation double effect

Working pressure 2 ÷ 8 bar (3 ÷ 8 bar for Ø10) Working temperature 5°C ÷ 60°C

Lubrification not required

Repeatibility ± 0.1 mm

Effective gripping force with pressure = 0.5MPa and gripping moment R = 40 mm ( Ø 10-16-20-25 ) or = 80 mm ( Ø 32 ) Ø 10 = 15N Ø 16 = 45N Ø 20 = 75N Ø 25 = 125N Ø 32 = 225N

Air ports Ø 10 - 16 - 20 - 25 = M5 Ø 32 = G1/8

Fluid filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied, the lubrication should never be interrupted.
