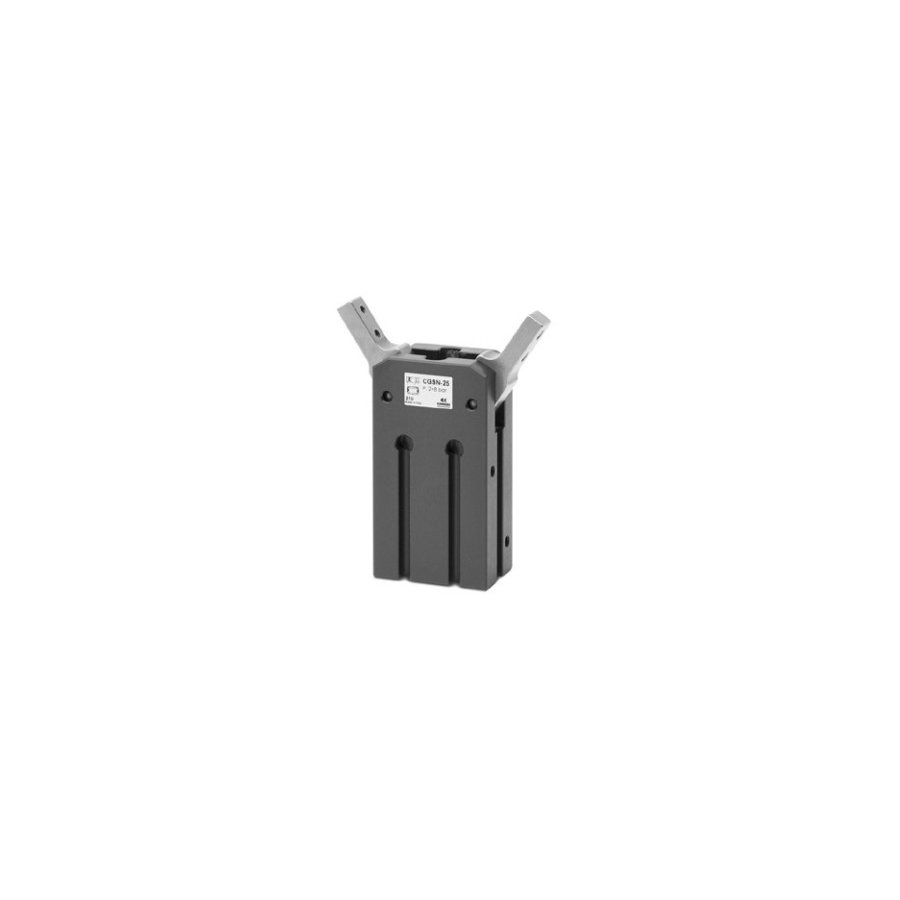

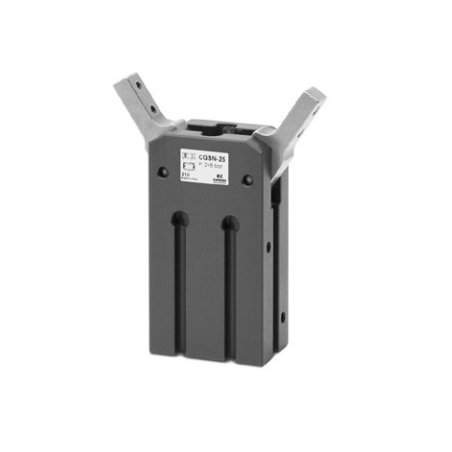

GENERAL DATA

Operation double effect Working pressure 2 bar ÷ 8 bar

Working temperature 5°C ÷ 60°C Max operating frequency 100 cylcles/min

Lubrication lubrication is required on sliding section only

Lever open/close angles -1° / + 180° (tolerance ±3°)

Repeatability ± 0.2 mm

Air ports M5x0.8

Fluid Filtered air without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32.

Once applied, lubrication should never be interrupted.

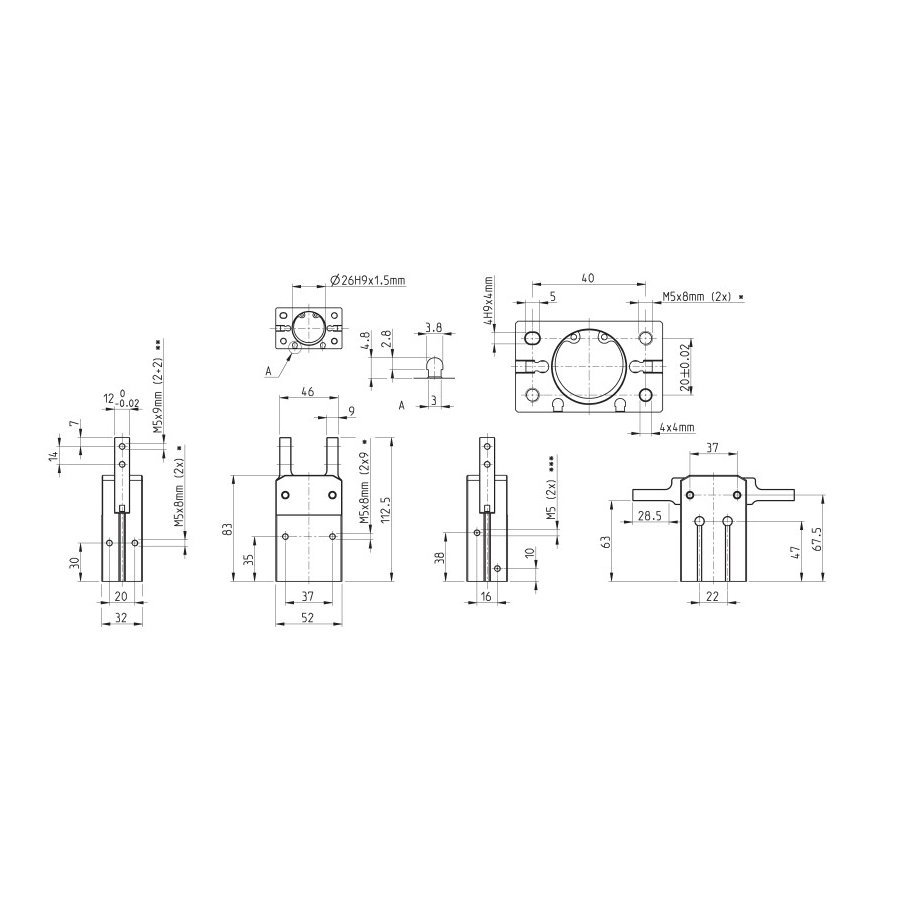

Bore sizes (mm) 16 20 25 32 Weight(g) 140 255 430 740

Theoretical gripping moment [M] (N·mm) 1230xP 2350xP 4540xP 9680xP [ P = pressure (MPa) ] Max length of gripping point [L] (mm) 80 100 120 140

Effective gripping force [F] (N) F = M/L x 0.9 (value with the fingers in parallel position) Example with P = 0.5MPa and L max F = 7N F = 10N F = 17N F = 30N
