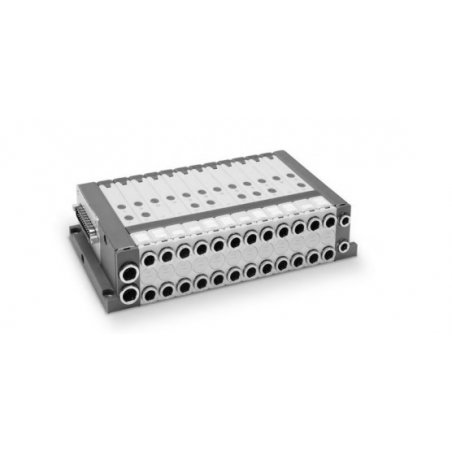

F SERIES

P TYPE:
P = pneumatic
A = accessories

2 SIZE:
1 = 12 mm
2 = 14 mm

R MANUAL OVERRIDE:
P = pressure actuation control
R = actuation control with push & turn device

M ELECTRICAL CONNECTION: M = multipole

T CARTRIDGES FOR LEFT TERMINAL:
S = tube Ø 8
T = tube Ø
10 Note: the cartdriges for the right terminal are for tube Ø 6.

A SERVO-PILOT SUPPLY:
A = internal
B = external

MB2CMUL2B SOLENOID VALVES AND ADDITIONAL PLATES *:
M = 5/2 monostable
D = 5/2 monostable with bistable electric board
B = 5/2 bistable
C = 2x3/2 NC
A = 2x3/2 NO
G = 3/2 NC + 3/2 NO
E = 2x2/2 NC
F = 2x2/2 NO
I = 2/2 NC + 2/2 NO
V = 5/3 CC
L = free position with passing electric board
W = free position with bistable electric board
Z = free position with monostable electric board
X = supplementary supply and exhaust
T = separated supply and exhaust
U = separated supply, supplementary exhaust
K = supplementary supply, separated exhaust

2QR3SLQR CARTRIDGES FOR SOLENOID VALVES AND ADDITIONAL PLATES *:
Q = tube Ø 4 R = tube Ø 6
S = tube Ø 8 (not for Size 1)
L = free position (no cartridges)
W= free position with bistable electric board (no cartridges)
Z = free position with monostable electric board (no cartridges)
