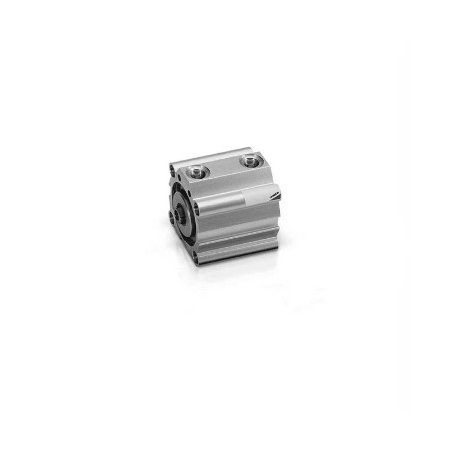

Cilindro de carrera corta vastago Pas. QP3A025A010

Referencia QP3A025A010

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Type of construction	Series QP: compact profile Series QPR: compact with non rotating guides
Operation	Series QP: single and double-acting Series QP: double-acting
Materials	anodized AL body - rolled stainless steel rod - NBR seals (FKM on request)
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Assembly	by means of screws or brackets
Operating pressure	1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Fluid	filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Strokes (min-max)	Series QP: ø12 ÷ ø 25= 1÷ 150 mm / ø 32 ÷ ø 100= 1÷200 mm Series QPR: ø 12= 1÷50 mm / ø 16= 1÷75 mm / ø 20 ÷ ø 100=1÷ 100 mm
Strokes	The minimum stroke for use of the sensors is 10 mm
Bores	ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
