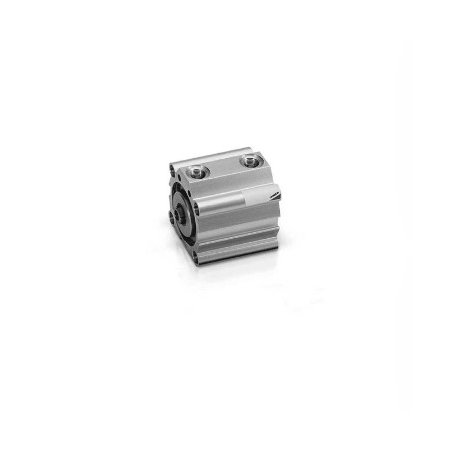

Cilindro de carrera corta vastago Pas. QP3A063A105
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Type of construction | Series QP: compact profile Series QPR: compact with non rotating guides |
Operation | Series QP: single and double-acting Series QP: double-acting |
Materials | anodized AL body - rolled stainless steel rod - NBR seals (FKM on request) |
Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
Assembly | by means of screws or brackets |
Operating pressure | 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting) |
Fluid | filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
Strokes (min-max) | Series QP: ø12 ÷ ø 25= 1÷ 150 mm / ø 32 ÷ ø 100= 1÷200 mm Series QPR: ø 12= 1÷50 mm / ø 16= 1÷75 mm / ø 20 ÷ ø 100=1÷ 100 mm |
Strokes | The minimum stroke for use of the sensors is 10 mm |
Bores | ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
