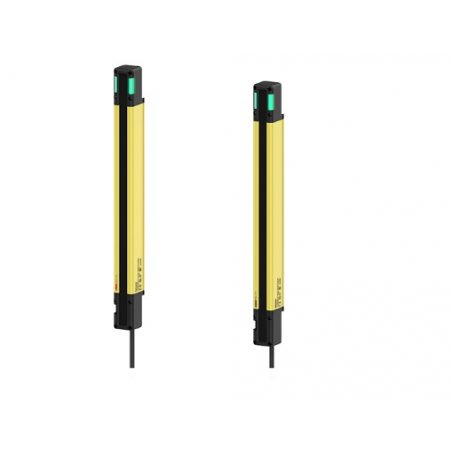

Las cortinas de luz de seguridad de la serie SFL/SFLA se instalan en áreas potencialmente peligrosas o peligrosas para proteger al personal de lesiones. Las cortinas de luz cuentan con tecnología comprobada de sensores de área y sensores de mapeo de Autonics. Las cortinas de luz están construidas para cumplir con los estándares y regulaciones de seguridad internacionales. Varios modelos de detección (dedo/mano/detección mano-cuerpo) y funciones de seguridad están disponibles para diversas aplicaciones. Para la serie SFLA, el software dedicado atLightCurtain permite monitorear el estado en tiempo real de la configuración del usuario, como las funciones automáticas de silenciamiento/supresión del área.

Sensing type	Through-beam type
Light source	Infrared LED(855nm)
Effective aperture angle(EAA)	Within ± 2.5 ° when the sensing distance is greater than 3 m for both emitter and receiver.
Sensing distance	Short - Long mode (setting switch)
Short mode	0.2 to 5 m
Long mode	0.2 to 10 m
Detection capability	Ø 14 mm (finger)
Sensing target	Opaque
Number of optical axes	71
Optical axis pitch	9mm
Series connection	Max. 3 SET (≤ 300 optical axes)
Power supply	24 VDC ±20 %(ripple P-P: ≤10 %)
Current consumption	Emitter: ≤106mA, receiver: ≤181mA
Safety related output: OSSD output	NPN or PNP open collector Load voltage : ON - 24 VDC (except for the residual voltage), OFF - 0 VDC Load current : ≤ 300 mA Residual voltage : ≤ 2 VDC(except for voltage drop due to wiring) Load capability: ≤ 2.2 ㎌ Leakage current: ≤ 2.0 mA Wire resistance of load: ≤ 2.7 Ω
Auxiliary output(AUX 1/2)	NPN or PNP open collector Load voltage: ≤ 24 VDC, Load current: ≤ 100 mA, Residual voltage: ≤ 2 VDC (except for voltage drop due to wiring)
Lamp output(LAMP 1/2)	NPN or PNP open collector Load voltage: ≤ 24 VDC, Load current: ≤ 300 mA
Protection circuit	Reverse power polarity, reverse output polarity, output short-circuit over-current protection
Safety-related functions	Interlock (reset hold), external device monitoring (EDM), muting/override, Blanking (fixed blanking, floating blanking), reduced resolution
General functions	Self-test, alarm for reduction of incident light level, mutual interference prevention
Others functions	Change of sensing distance, switching to NPN or PNP, external test (light emission stops), auxiliary output (AUX 1, 2), lamp output (LAMP1, 2)
Synchronization type	Timing method by RS485 synchronous line
Insulation resistance	Over 20MΩ (at 500VDC megger)
Noise immunity	The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC
Dielectric strength	1,000VAC 50/60Hz for 1 minute
Vibration	10 mm double amplitude at frequency of 5 to 150 Hz, 10 sweeps ni each X, Y, Z direction
Shock	250 m/s² (≈ 25 G), pulse width 6 ms in each X, Y, Z direction for 100 times
Environment_Ambient illumination	Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Ambient temperature	-30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation)
Ambient humidity	35 to 85 %RH, storage: 35 to 95 %RH (non-freezing or non-condensation)
Protection structure	IP65, IP67(IEC Standard), IP67G (JEM Standard), IP69K (DIN Standard)
Material	Case: Aluminum, Front cover and sensing part: Polymethyl methacrylate, End cap: polycarbonate, Power I/O cable and connector cable: polyurethane (PUR) or polyvinyl chloride (PVC), Y type connector cable: polyvinyl chloride (PVC), lamp output cable and series connector cable: polyurethane (PUR), Top / Bottom adjustable bracket and Top / Bottom bracket: SUS304, Side adjustable bracket and Side bracket: nickel plated Zn
International standards	UL 508, CSA C22.2 No. 14, ISO 13849-1 (PL e, Cat. 4), ISO 13849-2 (PLe, Cat. 4), UL 61496-1 (Type 4, ESPE), UL 61496-2 (Type 4, AOPDs), IEC/EN 61496-1 (Type 4, ESPE), IEC/EN 61496-2 (Type 4, AOPDs), IEC/EN 61508-1~-7 (SIL 3), IEC/EN 62061 (SIL CL 3)
