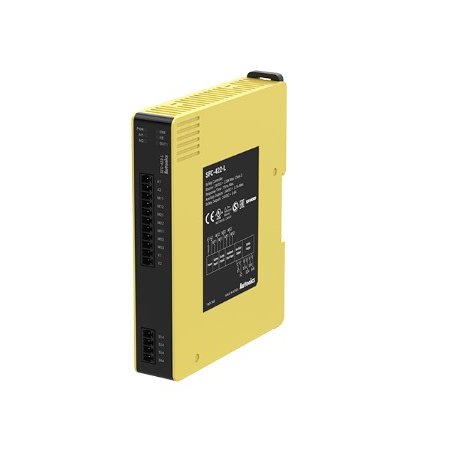

SFC-422 Controlador de seguridad 4 salidas instantáneas de 2 salidas auxiliares y alimentación 24VCC

Referencia SFC-422

Controlador de seguridad, 4 salidas instantáneas; 2 salidas auxiliares, P channel Feet; alimentación 24VCC;

Power supply : 24VDC
Power consumption : 2.5W
Input : ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA
Safety output : P channel FET
Sub output : 2 × PNP transistor: X1, X2 (error)
Logical AND connections : No. of connections: max. 4 units, no. of total connections: max. 20 units, No. of layers: max. 5 layers, cable length: max. ≤ 100m

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Power supply	24VDC
Allowable voltage range	85 to 110% of rated voltage
Power consumption	2.5W
Input	ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA
Cable	≤ 100m (≤ 100Ω, ≤ 10nF)
Safety output	P channel FET
Instantaneous	4 ×
Load current	Below 2-point output: ≤ DC 1A, Over 3-point output: ≤ DC 0.8A
Leakage current	≤ 0.1mA
Sub output	2 × PNP transistor: X1, X2 (error)
Logical AND connections	No. of connections: max. 4 units, no. of total connections: max. 20 units, No. of layers: max. 5 layers, cable length: max. ≤ 100m
International standards	IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3), IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe), UL listed E249635
Weight	Approx. 70g (approx. 120g)
