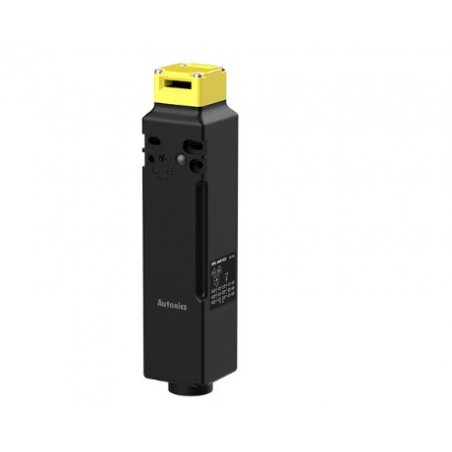

SFDL-MB-M20 Interruptor de seguridad para bloqueo de puerta 4 contactos2 N.C./1 N.O. puerta N.C 1./ N.O. 1

Referencia SFDL-MB-M20

Interruptor de seguridad para bloqueo de puerta bloqueo mecánico/desbloqueo por solenoide; 4 contactos (conectados), composición de contactos bloqueo N.C. 2 + puerta N.C. 1/N.O. 1, conexión tipo terminal; especificaciones de salida de conexión hilo M

Directing opening force : Min. 80N
Directing opening distance : Min. 10mm
Locking pullout strength : Min. 1,300N
Sold separately : Operation key
Weight : Approx. 440g(approx. 375g)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Directing opening force	Min. 80N
Directing opening distance	Min. 10mm
Locking pullout strength	Min. 1,300N
Operating speed	0.05 to 1m/s
Operating frequency	Max. 20/min
Life cycle_Mechanical	Min. 1,000,000 operations (20/min)
Vibration_Malfunction	0.35mm single amplitude at frequency of 10 to 55Hz (for 1 min) in each X,Y,Z direction for 10 min
Shock	1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction	1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP67(IEC standerd, except head)
Applicable cable	AWG22
Material	Head: zinc, case: polyamide 66, operation key: stainless steel 304
Sold separately	Operation key
Weight	Approx. 440g(approx. 375g)
Rated load voltage & current	Resistive load : 1A/120VAC~, 0.22A/125VDC Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC
Dielectric strength_Between the terminals of same polarity	1.5kV
Dielectric strength_Between the terminals of different polarity	1.5kV
Dielectric strength_Between each terminal and non-live part	2.5kV
Insulation resistance	100MΩ or more (500VDC megger basis)
Contact resistance	Max. 200mΩ
Life cycle_Electrical	Min. 100,000 operations (125VAC~/1A)
Conditional short circuit current	100A
Rated voltage	24VDC
Current consumption	Supplying power: 0.26A Normal: max. 0.2A (approx. 3 seconds after supplying power)
Insulation class	Class E
