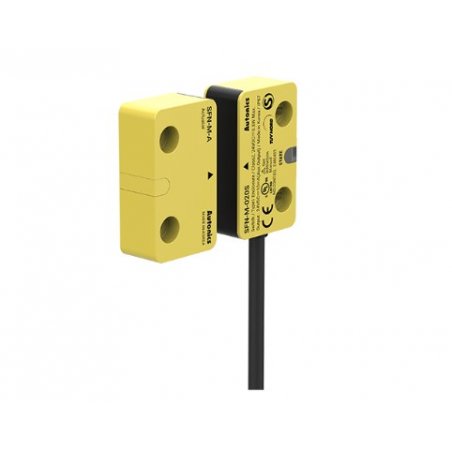

SFN-M-050 Interruptores de seguridad para puerta y sin contacto de sensado magnético cable de 5m 5 hilos

SFN-M-050

Interruptores de seguridad para puerta y sin contacto, método de sensado magnético; cable de 5m, 5 hilos

  • Operation distance_OFF→ON : ≥ 5 mm
  • Operation distance_ON→OFF : ≤ 15 mm
  • Weight : Approx. 199.5g(approx. 214.8g)
  • Power supply : 24VDCEQ.svg±10%
  • Connection : Cable type
Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Operation distance_OFF→ON ≥ 5 mm
Operation distance_ON→OFF ≤ 15 mm
Weight Approx. 199.5g(approx. 214.8g)
Power supply 24VDCEQ.svg±10%
Operating frequency 100Hz
Power consumption ≤ 400mA
Sub output PNP open collector output - 24 VDC, 10 mA
Operation indicator ON: green, OFF: red
Life expectancy ≥ 20,000,000 times (with low load)
Insulation resistance ≥ 50 MΩ (500 VDCEQ.svg megger)
Protection circuit Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Dielectric strength 1,500 VAC~ 50/60Hz for 1 minute
Vibration 1.0 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
Vibration_Malfunction 1.0 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 min
Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Shock_Malfunction 300m/s² (approx. 30G) in each X, Y, Z direction in output ON/OFF status for 3 times
Ambient temperature -10 to 55℃, storage: -20 to 60℃
Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP67(IEC standard)
Connection Cable type
Connector type M12 Connector
Material Body/CAP: PC
