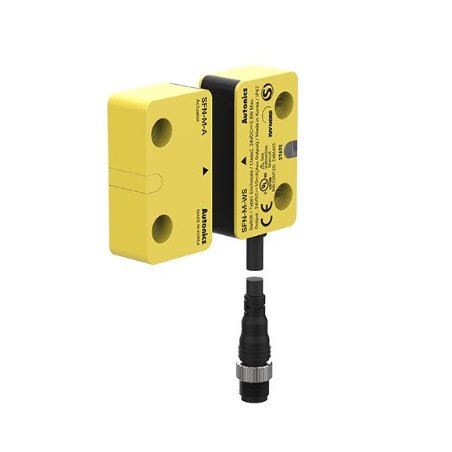

SFN-M-W Interruptores de seguridad para puerta y sin contacto de sensado magnético cable de 0.3m 5 hilos

Referencia SFN-M-W

Interruptores de seguridad para puerta y sin contacto, método de sensado magnético; cable de 0.3m, 5 hilos

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Operation distance_OFF→ON	≥ 5 mm
Operation distance_ON→OFF	≤ 15 mm
Weight	Approx. 58.1g(approx. 71.6g)
Power supply	24VDC±10%
Operating frequency	100Hz
Power consumption	≤ 400mA
Sub output	PNP open collector output - 24 VDC, 10 mA
Operation indicator	ON: green, OFF: red
Life expectancy	≥ 20,000,000 times (with low load)
Insulation resistance	≥ 50 MΩ (500 VDC megger)
Protection circuit	Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Dielectric strength	1,500 VAC~ 50/60Hz for 1 minute
Vibration	1.0 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
Vibration_Malfunction	1.0 mm amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 min
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Shock_Malfunction	300m/s² (approx. 30G) in each X, Y, Z direction in output ON/OFF status for 3 times
Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP67(IEC standard)
Connection	Cable connector type
Connector type	M12 Connector
Material	Body/CAP: PC
