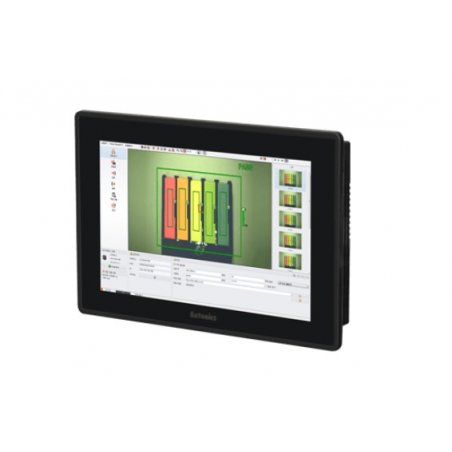

APC-1011-EN Panel PC de 10 pulgadas intuitivo para usuarios de Windoes 10 alimentación 24VCc disco duro Msata 64GB SSD

Referencia APC-1011-EN

Panel PC de 10 pulgadas intuitivo para usuarios de Windoes 10, alimentación 24VCC; disco duro Msata 64GB SSD, memoria DDR3L 4GB; altavoz estéreo 2W+2W, batería con ciclo de vida de 5 años; protección IP65 (panel frontal, estándar IEC),

Language : English
Power supply : 24VDC
Allowable voltage range : 90 to 110% of rated voltage
Power consumption : Max. 30W
Hard disk : mSATA 64GB SSD
System memory : DDR3L 4GB

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Language	English
Power supply	24VDC
Allowable voltage range	90 to 110% of rated voltage
Power consumption	Max. 30W
Hard disk	mSATA 64GB SSD
System memory	DDR3L 4GB
Indicator	Power indicator: green LED
Speaker	Stereo speaker 2W+2W
Watch dog timer	Watch Dog Timer (1 to 255 sec, software setting)
Battery life cycle	5 years at 25℃
Real-time controller	RTC embedded
Insulation resistance	100MΩ or more (500VDC megger basis)
Ground	3rd grounding (max. 100Ω)
Noise immunity	±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
Dielectric strength	500VAC 50/60Hz for 1 minute
Vibration	0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each X, Y, Z direction for 1 hour
Vibration_Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 minute) in each X, Y, Z direction for 10 minutes
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Shock_Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP65 (Front panel, IEC standards)
Accessories	Fixing bracket: 8, mold bracket: 1, M3 bolt for mold bracket: 2
Weight	Approx. 2kg (approx. 1.6kg)
