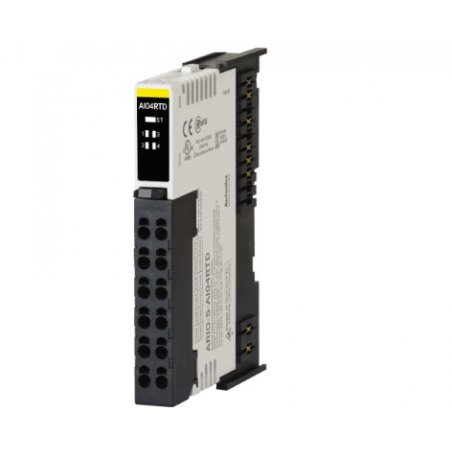

ARIO-S-AI04RTD Módulo de entrada de temperatura 4 canales protección IP20 (IEC standard)

Referencia ARIO-S-AI04RTD

Módulo de entrada de temperatura, 4 canales; protección IP20 (IEC standard)

I/O method : Resistance input
Display accuracy : ±0.2% F.S. ±1-digit
Status indicator ON conditions : Temperature input within the rated range
※ No operation when the thermometer is not attached.
Resolution : 16bit
Power consumption_ABUS : 5VDC, max. 180mA (max. 0.9W)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

I/O method	Resistance input
Display accuracy	±0.2% F.S. ±1-digit
Status indicator ON conditions	Temperature input within the rated range ※ No operation when the thermometer is not attached.
Resolution	16bit
Power consumption_ABUS	5VDC, max. 180mA (max. 0.9W)
Power consumpti_I/O	max. 100mA (max. 0.5W)
Mounting type	DIN rail mounting
Insulation resistance	100MΩ (at 500VDC megger) I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature	-10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP20(IEC standard)
Material	Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight	Approx. 108g (approx. 75g)
