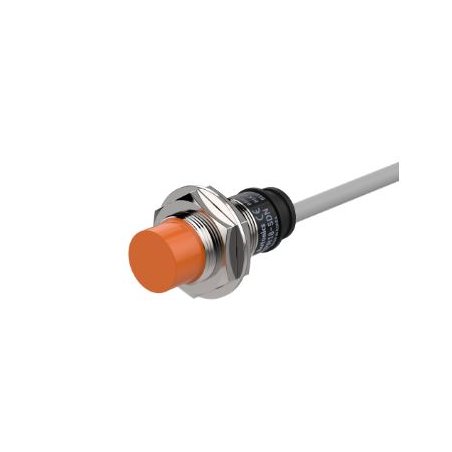

PR18-8DP-V Sensor de proximidad cilindrico sensado 8 mm alimentacion 12-24VCC frecuencia 350Hz salida PNP N.A.

Referencia PR18-8DP-V

Sensor de proximidad cilindrico distancia de sensado 8 mm, alimentacion 12-24VCC; respuesta en frecuencia 350Hz, salida PNP N.A. y proteccion IP67

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M18
Sensing distance	8mm
Installation	Non-flush
Standard sensing target	25×25×1mm(iron)
Response frequency	350Hz
Current specification	Current consumption: Max. 10mA
Control output	PNP Normally Open
Material	Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material	Oil resistant cable
Protection structure	IP67(IEC standard)
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	Approx. 122g(approx. 110g)
