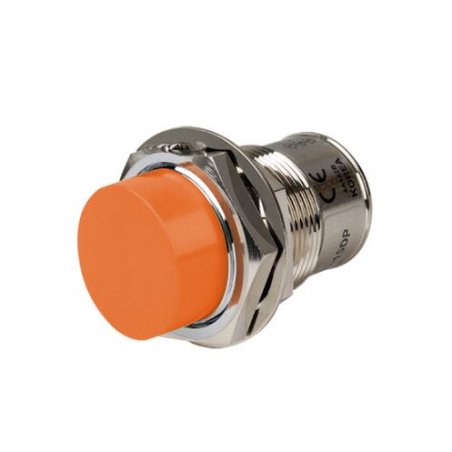

Sensor de proximidad tipo conector cilindrico distancia de sensado 15 mm, alimentacion 12-24VCC; respuesta en frecuencia 200kHz, salida PNP N.A. y proteccion IP67
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Sensor, Inductive Prox, M30 Round, Connector type, Non-Shielded, 15mm Sensing, PNP NO, 3 Wire 10...
Wire type and power | DC 3-wire type 12-24VDC |
---|---|
Sensing side diameter | M30 |
Sensing distance | 15mm |
Installation | Non-shield(non-flush) |
Standard sensing target | 45×45×1mm(iron) |
Response frequency | 200Hz |
Current specification | Current consumption: Max. 10mA |
Control output | PNP Normally Open |
Material | Brass(nickel plated) |
Cable Standard/material | Standard connector |
Protection structure | IP67 |
Approval | |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80? |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 10% of sensing distance |
Residual voltage | Max. 1.5V |
Weight | Approx. 146g(approx. 134g) |
