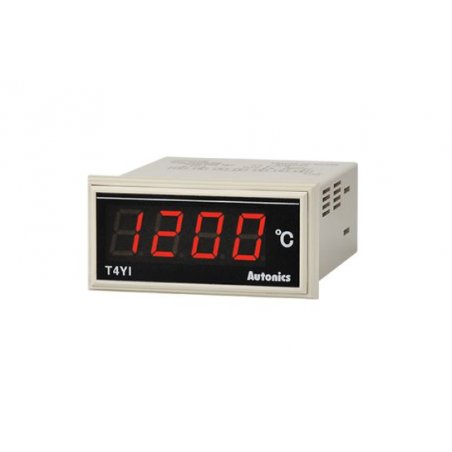

T4YI-N4NP0C-N Indicador de temperatura 4 digitos DIN W72xH36mm control indicador alim 100-240VCA entrada DPt100

Referencia T4YI-N4NP0C-N

Indicador de temperatura de 4 digitos, tamaño DIN W72xH36mm;salida y control tipoindicador;alim. 100-240VCA, salida indicador; entrada DPt100 Ohms, rango temp. de -99.9 a 99.9, -99 a 199, -99.9 a 199.9C nuevo

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet
Display method	4-digit 7-segment LED
Input specification	RTD: DPt100?
Sampling cycle	100ms
Control output	Indicator
Display range	-99.9 to 99.9, -99 to 199?, -99.9 to 199.9?
Power supply	100-240VAC~ 50/60Hz
Display accuracy_RTD	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Environment_Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 181g(approx. 123g)
