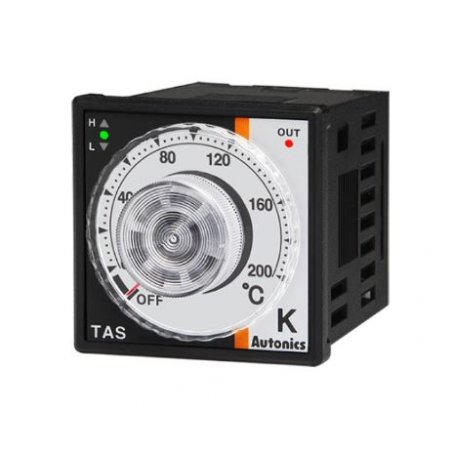

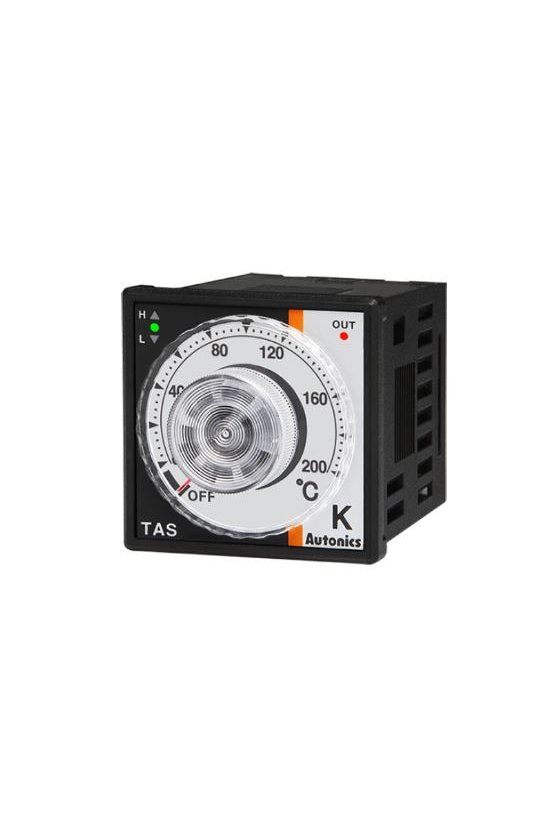

TAS-B4SK2C Controlador de temperatura analogo DIN W48xH48mm control ON/OFF & PID alim 100-240VCA 50/60Hz sensor K

Referencia TAS-B4SK2C

Controlador de temperatura de ajuste analogo, tamaño DIN W48xH48mm (conector de 8 pines); control ON/OFF & PID combinados, alimentacion100-240VCA 50/60Hz; salida SSR drive, entrada del sensor K (CA); rango de temperatura 0 a 200C

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Temp Control, 1/16 DIN, Analog, PID Control, SSR Output, K Thermocouple, 200 C, 100-240 VAC

Data sheet


Size	DIN W48×H48mm
Display method	Non-display
Control method	ON/OFF control PID control
Input specification	Thermocouple: K(CA)
Temperature unit	?
Setting range	0~200
Sampling cycle	100ms
Control output	SSR drive(12VDC ) [ON/OFF]
Power supply	100-240VAC~ 50/60Hz
Approval
Setting type	Dial setting
Setting accuracy	F.S. ±2%(room temperature 23?±5?)
Environment_Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Weight	Approx. 107g(approx. 69g)
