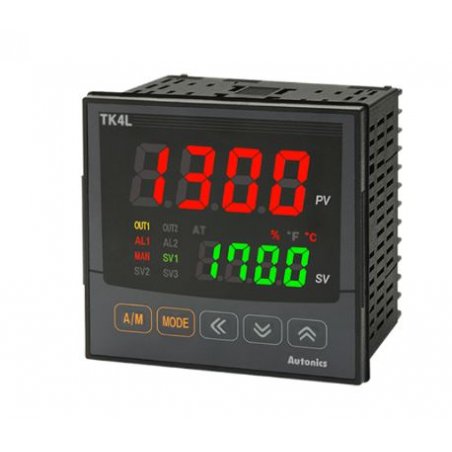

TK4L-14CN Controlador de temperatura PID estandar de alta precision 4 digitos DIN W96xH96mm

Referencia TK4L-14CN

Controlador de temperatura PID estandar de alta precision, 4 digitos , DIN W96xH96mm; 1 salida de alarma; 100-240VCA 50/60Hz, salida de control 1 a corriente+SSR y proteccion IP 65

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Temp Control, DIN W96XH96mm, 1 Alarm, Current or SSR Drive Output, 100-240VAC

Data sheet


Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100?, DPt50â„ƒ, JPt100?, Cu100?, Cu50â„ƒ, Nikel 120? Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA
Sampling cycle	50ms
Control output 1	Current(DC0/4-20mA) or SSR drive(11VDC ) [ON/OFF]
Option input	CT, Digital(DI-1)
Option output	Alarm 1
Power supply	100-240VAC~ 50/60Hz
Protection structure	IP65(front panel)
Approval
Display accuracy_RTD	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy_Thermocouple	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy_Analog	•At room temperature(23?±5?): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5?% F.S. ±1-digit
Display accuracy_CT input	±5% F.S. ±1-digit
Hysteresis(adjustable sensitivity)	RTD/Thermocouples: 1 to 100â„ƒ/â„‰(0.1 to 100.0â„ƒ/â„‰) variable Analog: 1 to 100-digit
Proportional band	0.1 to 999.9?/?(0.1 to 999.9%)
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50?, storage: -20 to 60â„ƒ
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Weight	Approx. 294g(approx. 198g)
