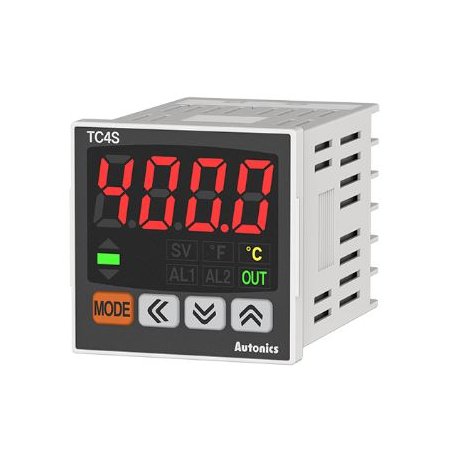

TC4S-N4R Controlador de temperatura economico display individual y control PID 4 digitos tamaño DIN W48xH48mm

Referencia TC4S-N4R

Controlador de temperatura economico, display individual y control PID; ajuste por teclas frontales, 4 digitos (9999); tamaño DIN W48xH48mm (bloque de term.), sin salida de alarma; alim. 100-240VCA 50/60Hz y salida de control a relevador+drive SSR

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet

Size	DIN W48×H48mm
Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), L(IC) RTD: DPt100?, Cu50â„ƒ
Sampling cycle	100ms
Control output	Relay (250VAC~ 3A) or SSR drive (12VDC ) [ON/OFF, phase, cycle]
Power supply	100-240VAC~ 50/60Hz
Approval
Display accuracy_RTD	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)	1 to 100â„ƒ/â„‰(0.1 to 50.0â„ƒ/â„‰) variable
Proportional band	0.1 to 999.9?/?
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight	Approx. 141g(approx. 94g)
