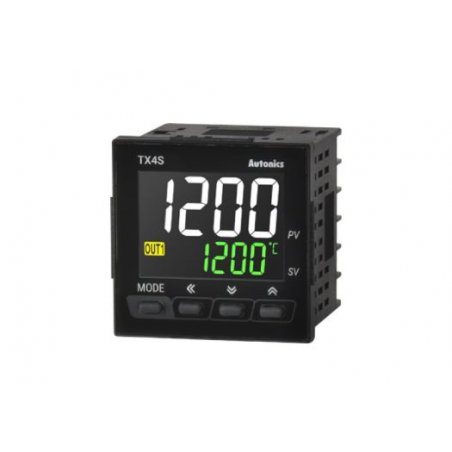

TX4S-24R Controlador de temperatura PID con display LCD estándar 4 dígitos dimensiones DIN W48xH48mm

Referencia TX4S-24R

Controlador de temperatura PID con display LCD estándar, 4 dígitos; dimensiones DIN W48xH48mm, opciones de salida alarma1+alarma2; alimentación 100-240 VCA 50/60Hz, salida a relevador

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Temp Control, 1/16 DIN, LCD display 4 Digit, PID Control, Relay Output, 2 Alarm Output, 100-240 ...

Data sheet


Display method	4-digit 11-segment LCD
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100?, Cu50â„ƒ
Sampling cycle	50ms
Control output	Relay (250VAC~ 3A, 30VDC 3A)
Option output	Alarm 1/2
Power supply	100-240VAC~ 50/60Hz
Protection structure	IP50(front panel)
Approval
Display accuracy_RTD	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Display accuracy_Thermocouple	•At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit
Hysteresis(adjustable sensitivity)	1 to 100â„ƒ/â„‰(0.1 to 50.0â„ƒ/â„‰) variable
Proportional band	0.1 to 999.9?/?
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50â„ƒ, storage: -20 to 60â„ƒ
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation (mark: , dielectric strength between primary circuit and secondary circuit: 3kV)
Weight	Approx. 146.1g(approx. 86.7g)
