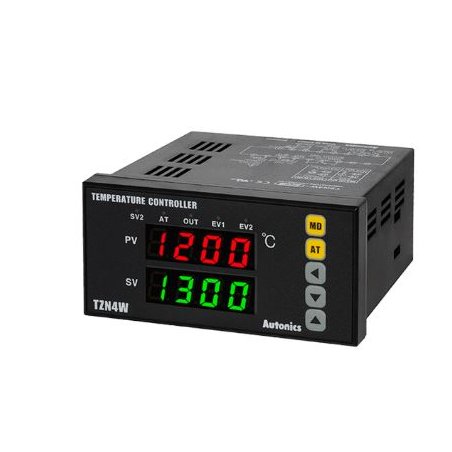

TZN4W-R4C Controlador de temperatura dual PID 4 digitos dimensiones DIN W96xH48mm

Referencia TZN4W-R4C

Controlador de temperatura dual PID de sintonizacion automatica, 4 digitos; dimensiones DIN W96xH48mm, opcion de salida evento 1+transmision PV (DC4-20mA); alimentacion 100-240VCA 50/60Hz salida de corriente (DC4-20mA)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)


Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PIDF, PIDS control
Input specification	Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT) RTD: DPt100Ω, JPt100Ω Analog: 1-5VDC , 0-10VDC , DC4-20mA
Sampling cycle	500ms
Control output	Current output(DC4-20mA)
Option output	Event 1, PV transmission (DC4-20mA)
Power supply	100-240VAC~ 50/60Hz
Display accuracy	F.S ± 0.3% or 3℃, select the higher one
Alarm output hysteresis	1 to 100℃ (0.1 to 100.0℃) variable
Proportional band	0.0 to 100.0%
Integral time	0 to 3,600 sec
Derivative time	0 to 3,600 sec
Control period	1 to 120 sec
LBA setting	1 to 999 sec
Ramp setting	Ramp Up, Ramp Down: 1 to 99 min each
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 351g(approx. 232g)
