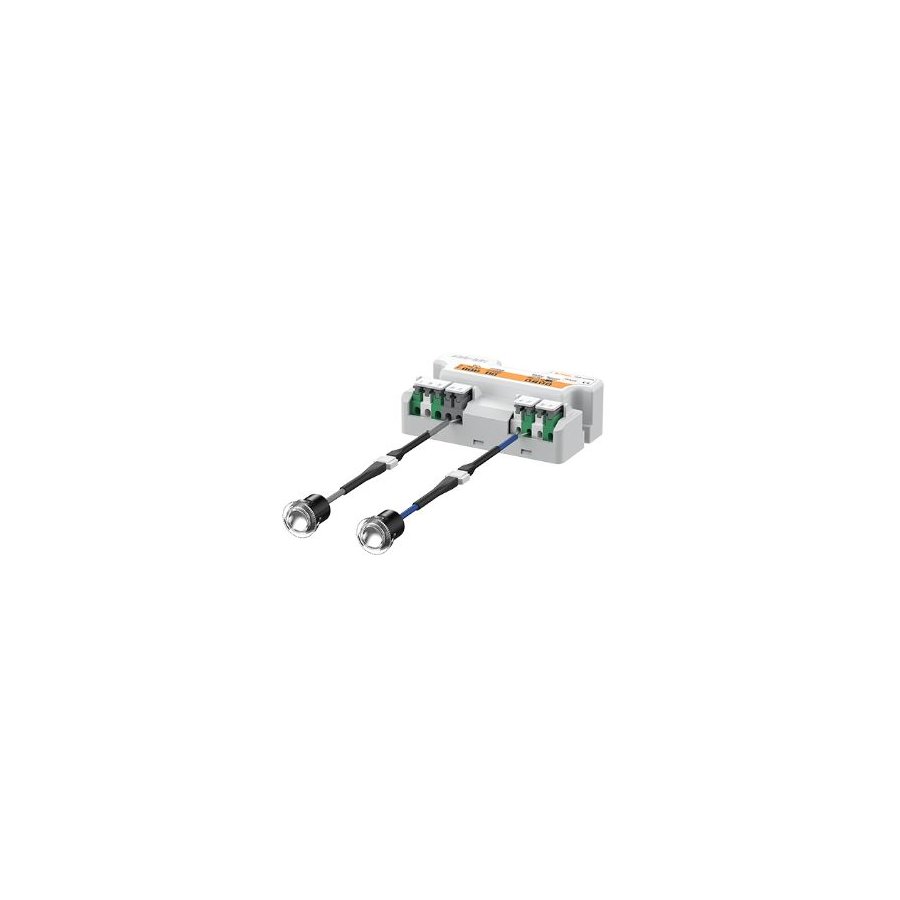

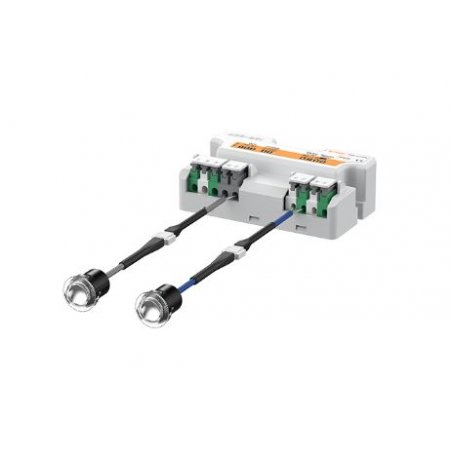

Sensor lateral para puerta tipo barrera, alimentacion 12-24VCA/VCC; salida a relevador NA max. 50VCC 0.3A, carga resistiva, distancia de sensado de 0 a 10m; tiempo de respuesta de aprox. 50ms (con luz apagada) y grado de proteccion IP30
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Sensing type | Through-beam type |
---|---|
Sensing distance | 0 to 10m |
Light source | Infrared LED(850nm modulated) |
Power supply | 12-24VAC~ ±10% 50/60Hz 12-24VDC |
Current consumption and Power consumption | Current Consumption: Max. 2VA, Power Consumption: Max. 50mA |
Control output | Relay(SPST(1a)) |
Sensing Channel | 1-channel |
Sensitivity adjustment | Set by button |
Sensor cable length | 5m |
Environment_Ambient illumination | Sunlight: Max. 100,000lx(receiver illumination) |
Environment_Ambient temperature | -20 to 55℃, storage: -25 to 60℃ |
Protection structure | IP30 |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Response time | Approx. 50ms(from light OFF) |
Output holding time | Approx. 500ms(from light ON) |
Available sensor set | 1-channel |
Sensor cable | Ø2.4mm, 1-wire, 5m(AWG26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1.32mm) |
Material | Sensor - Holder: Acrylonitrile butadiene styrene, Lens: Polymethyl methacrylate, Lens guide: Polycarbonate, Nut: Polycarbonate Controller - Housing: Acrylonitrile butadiene styrene, Cover: Acrylonitrile butadiene styrene, Bolt: Steel chromium molybden |
Accessories | Sensor 1set(ADS-SHP), Fixing bolt(M4×20) for controller: 2 |
Weight | Approx. 450g(approx. 300g) |
