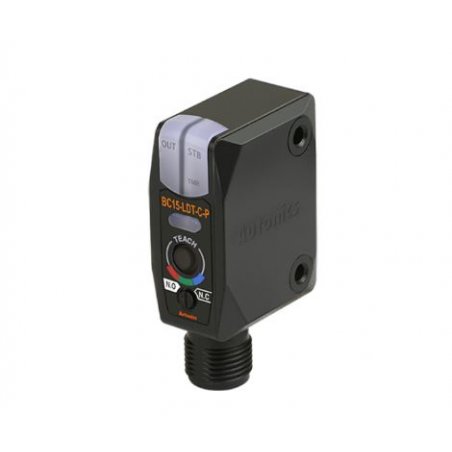

BC15-LDT-C-P Sensor de color reflectivo convergente fuente de luz LED sensado C sensado 15mm alimentación12-24VDC

Referencia BC15-LDT-C-P

Sensor de color tipo reflectivo convergente,fuente de luz LED a color (rojo, verde, azul),modo de sensado C (solo color), C+I (color+intensidad)distancia de sensado 15mm;alimentación12-24VDC,salida PNP colector abierto;IP67

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet

Sensing type	Convergent reflective type
Sensing distance	15mm
Sensing target	Color(opaque, translucent Material)
Light source	Full Color LED(red, green, blue)
Response time	500?
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	3-level
Operation mode	color only,color + intensity
Control output	PNP open collector
Timer function	Timer Function
Connection type	Connector type(M12)
Environment_Ambient illumination	Incandescent lamp: Max. 3,000lx
Environment_Ambient temperature	-10 to 55â„ƒ, storage: -25 to 75?
Protection structure	IP67
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance(may vary by sensing mode or sensitivity)
Spot size	1.24×6.7mm(rectangular)
Sensing mode	C(color only) mode, C+I(color + intensity) mode
Output mode	Color match output, color mismatch output
External input	External SET cable input
Material	Case: polycarbonate, Sensing part: acrylic, Bracket: stainless steel 304 , Bolt: carbon steel
Accessories	Bracket, Fixing bolts: 2 , Adjustment screwdriver: 1
Weight	Approx. 80g(approx. 14g)
