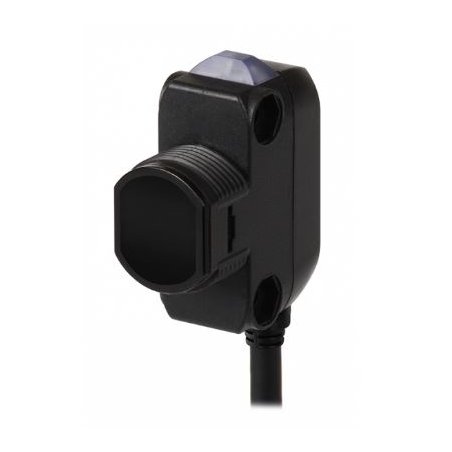

BH1M-DDT Sensor fotoeléctrico de montaje frontal/lateral difuso reflectivo alimentación 12-24VCC

Referencia BH1M-DDT

Sensor fotoeléctrico de montaje frontal/lateral, tipo difuso reflectivo; alimentación 12-24VCC, salida de control simultánea (NPN/PNP); longitud de cable 2.1m, distancia de sensado 1m y protección IP67

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet

Sensing type	Through-beam type
Sensing distance	20m
Sensing target	Opaque material of min. Ø20mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Connection type	Cable type(Ø4, 2.1m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP67
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic
Accessories_Common	Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut
Weight	Approx. 190g(approx. 120g)
