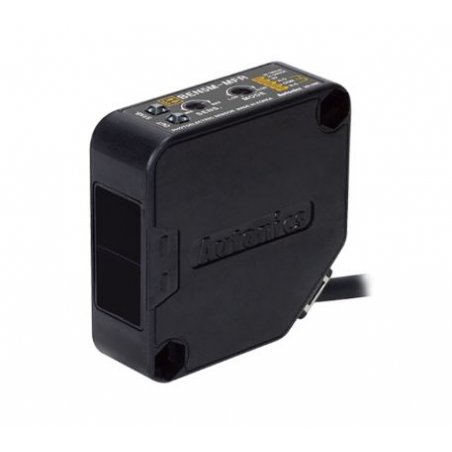

BEN5M-MFR Sensor Fotoelectrico retro reflectivo deteccion de 5m alimentacion de 24-240VCC/24-240VCA

Referencia BEN5M-MFR

Sensor Fotoelectrico retro reflectivo con distancia de deteccion de 5 metros; alimentacion de 24-240VCC/24-240VCA modo de operacion Light ON Dark On seleccionable por potenciometro, salida a relevador y proteccion IP50

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet

Sensing type	Retroreflective type(standard type)
Sensing distance	5m(MS-2)
Sensing target	Opaque material of min. Ø60mm
Light source	Infrared LED(850nm)
Response time	Max. 20ms
Power supply	24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 4VA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	Relay
Connection type	Cable type(Ø5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 65â„ƒ, storage: -25 to 70â„ƒ
Protection structure	IP50
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden
Accessories_Individual	Reflector(MS-2)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 208g
