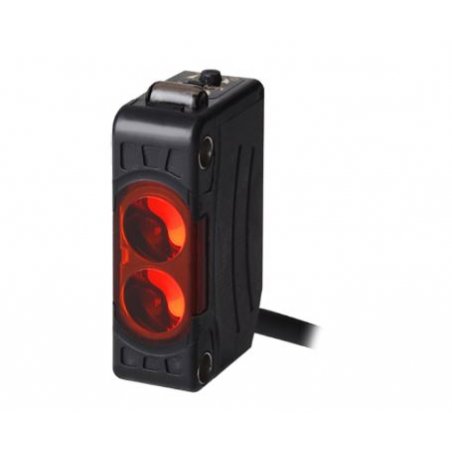

BJ30-BDT Sensor Fotoelectrico reflectivo BGS deteccion de 30 m alimentacion de 12-24VCC

Referencia BJ30-BDT

Sensor Fotoelectrico reflectivo BGS con distancia de deteccion de 30 milimetros; alimentacion de 12-24VCC modo de operacion Light ON Dark On seleccionable por potenciometro, salida NPN y proteccion IP65

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet

Sensing type	BGS reflective type
Sensing distance	10 to 30mm
Sensing target	Opaque, Translucent material
Light source	Red LED(660nm)
Response time	Max. 1.5ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP65
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 10% of sensing distance
Min. diameter of transmitting spot	Approx. Ø5.0mm
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 50g
