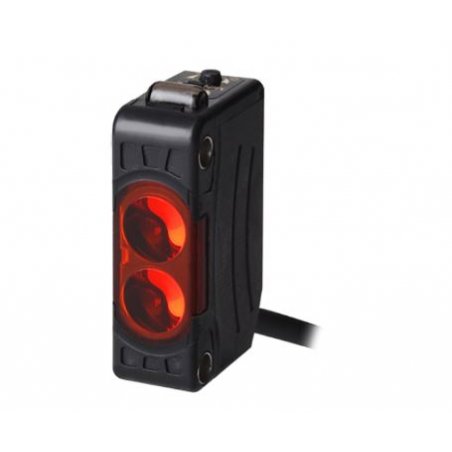

BJ30-BDT-P Sensor Fotoelectrico reflectivo BGS deteccion de 30m alimentacion de 12-24VCC

Referencia BJ30-BDT-P

Sensor Fotoelectrico reflectivo BGS con distancia de deteccion de 30 milimetros; alimentacion de 12-24VCC modo de operacion Light ON Dark On seleccionable por potenciometro, salida PNP y proteccion IP65

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Sensor, Photo, BGS Reflective Type, 30mm Sensing distance, Light & Dark On, PNP Output, 12-24 VDC

Data sheet

Sensing type	BGS reflective type
Sensing distance	10 to 30mm
Sensing target	Opaque, Translucent material
Light source	Red LED(660nm)
Response time	Max. 1.5ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Cable type(Ø3.5, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP65
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 10% of sensing distance
Min. diameter of transmitting spot	Approx. Ø5.0mm
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 50g
